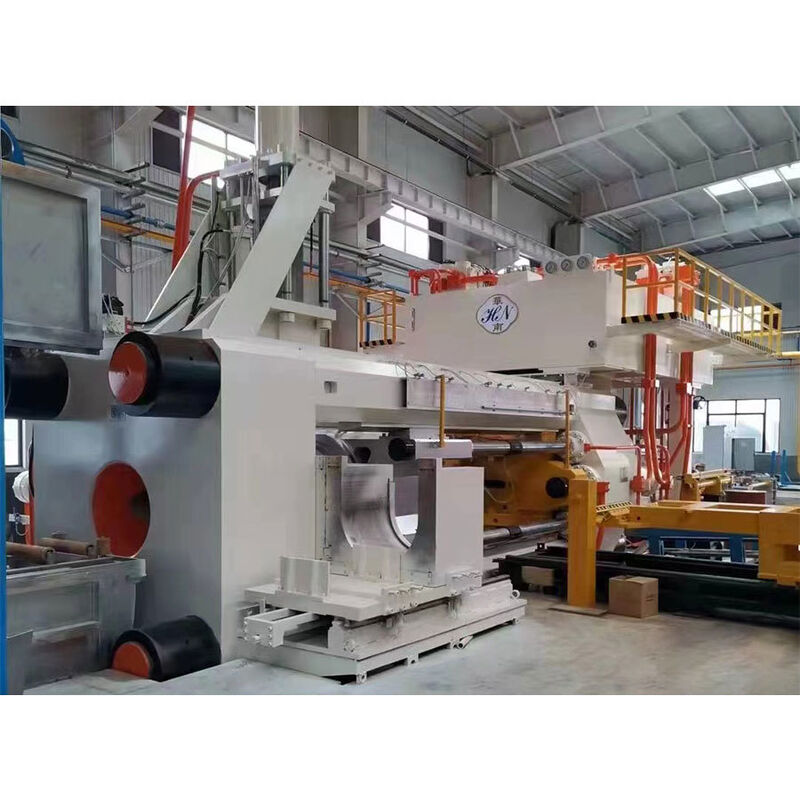

5000MT Hydraulic Aluminium Profile Extrusion Press Machine

5000MT Hydraulic Aluminium Profile Extrusion Press Machine

Brand Name:	Huanan
MOQ:	1 Pcs
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Power:

Electric Energy

Size:

Customizable

Use:

Aluminum Extrusion

Motor:

Servo Or Ordinary Motor

Functional:

Automatic Or Semi-automatic

Surface Treatment:

Heat Treatment

Material:

Steel Forging

Color:

Customized

Packaging Details:

Wooden pallet

Highlight:

5000MT aluminium extrusion line

Hydraulic aluminium extrusion line

5000MT aluminium extrusion machine

Product Description

5000MT Hydraulic Aluminium Profile Extrusion Press Machine

Product Specifications

Attribute	Value
Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment
Material	Steel Forging
Color	Customized

Product Overview

The 5000MT extrusion press represents the pinnacle of aluminum extrusion technology, designed for mission-critical applications where only the most massive, most precise profiles will suffice. This industrial-grade machine is engineered for producing components for aerospace, marine, and advanced transportation systems.

Technical Specifications

Standard Billet Size (Outer diameter)	Φ330mm
Standard Billet Size (Length)	600~1400mm
Machine extrusion force	50.7MN
Die Size (Diameter)	Φ650mm
Die Size (Depth)	H750mm
Total Power	1105KW
Main oil pump (Hilectro brand)	HP130U2-G120W-R1P4(160KW)*6
Liquid cooling driver	Hi200-180KW*6

Key Advantages

The short-stroke design increases frame rigidity by 30% compared to conventional extruders
Reduced hydraulic oil consumption enhances control accuracy and energy efficiency
Elimination of gasket circulation system decreases reactive operation time
Servo motor-driven translation manipulator reduces non-extrusion time by 15%

Industry Applications

Our hydraulic aluminum extrusion machine serves diverse industries including construction, industrial trade, new energy, and photovoltaic sectors. The produced aluminum profiles are ideal for:

Architectural elements: roofs, walls, doors, windows, and frames
Structural components: lattice shells, grid structures, and support systems
Decorative applications: interior/exterior panels, partitions, ceilings, and railings
Industrial uses: store containers, formwork, and specialized construction materials

Technical Features

Robust design with critical components exhibiting low failure rates
Minimal operational impact and vibration with reduced leakage risk
High responsiveness and efficiency with shortened non-extrusion periods
Precision control with extrusion speed accuracy within ±0.1mm
Advanced automation reduces operator and maintenance requirements

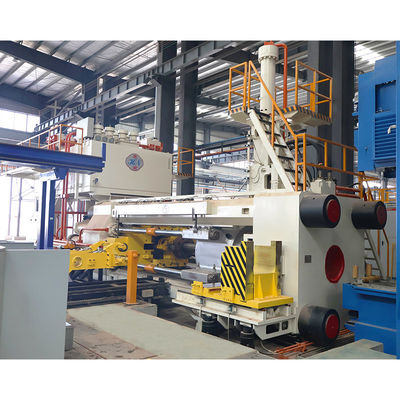

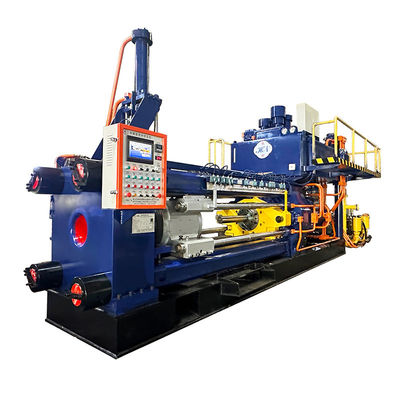

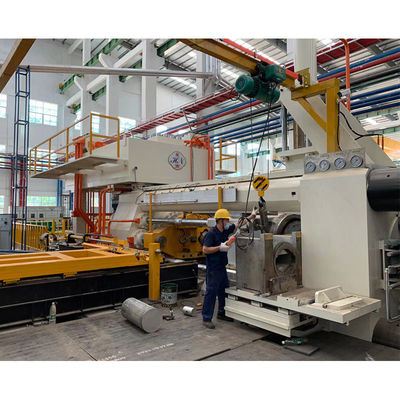

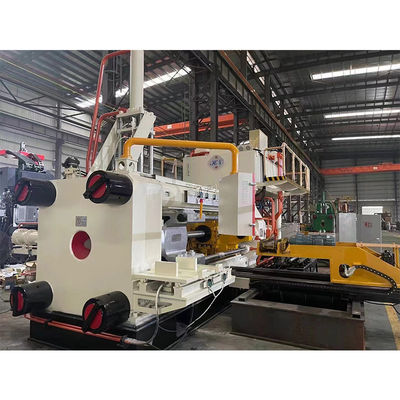

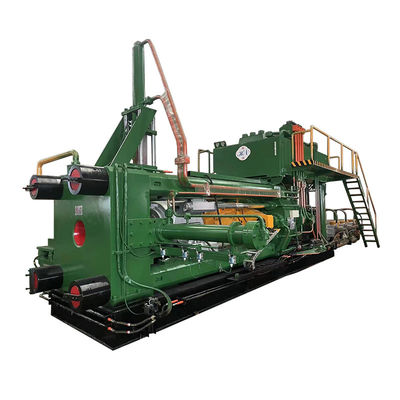

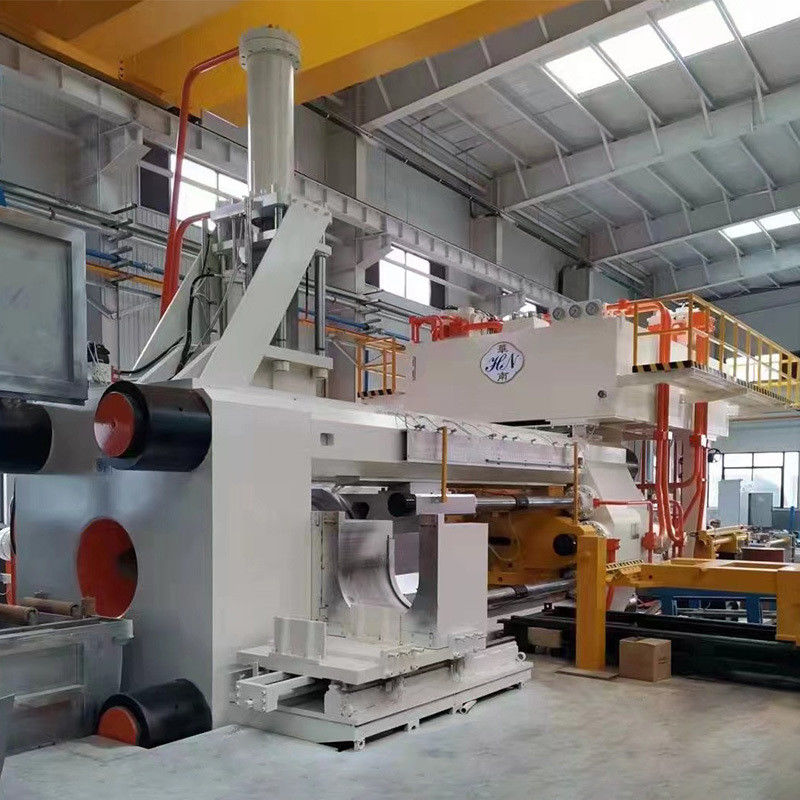

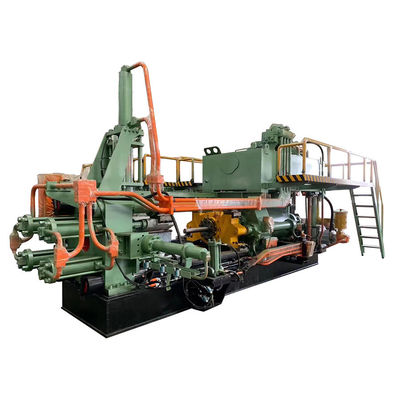

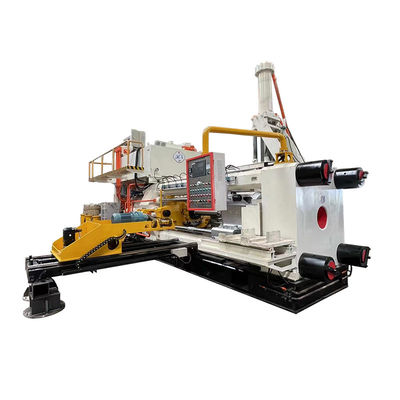

Product Gallery

Frequently Asked Questions

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is recognized as premium extrusion equipment in China. With proper maintenance, the machine lifespan typically exceeds 15 years, with many established aluminum manufacturers among our satisfied customers.

Q2: How to choose the right type machine?

Provide your profile sectional drawing dimensions and intended applications. Our engineers will calculate and recommend the optimal machine configuration for your specific requirements.

Q3: Will Huanan provide installation service?

Our technicians will conduct on-site installation and comprehensive operator training once the machine arrives at your facility and installation conditions are met.

Q4: What is the delivery time of Huanan Machines?

Production lead times vary by machine size:
- 600-1000MT: 30 days
- 1250-1800MT: 45-60 days
- 2000-3000MT: 180 days
- 3000MT+: 6-12 months
Complete production lines typically require 3-10 months.

Q5: What services Huanan can do for you?

We provide comprehensive support including:

Technical consultation and customized production solutions
Complete design, manufacturing, and quality assurance
Shipping coordination and documentation
Installation, training, and lifetime maintenance support
