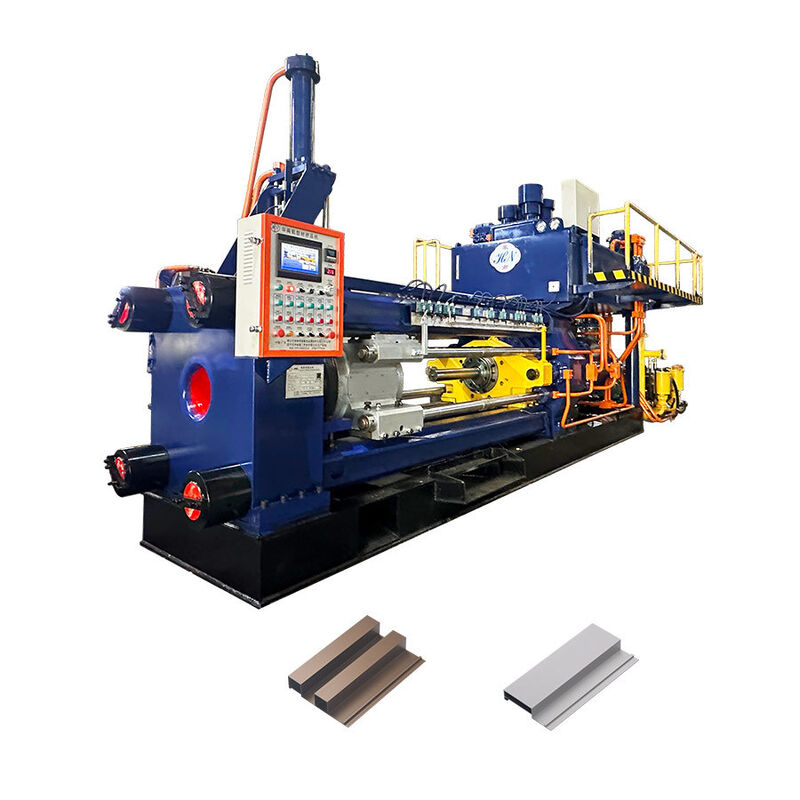

1100T Hydraulic Aluminum Extrusion Line Machine For Aluminum Press Profile

1100T Hydraulic Aluminum Extrusion Line Machine For Aluminum Press Profile

Brand Name:	Huanan
Model Number:	HN-1100T
MOQ:	1 Pcs
Price:	$159400-$182000
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Material:

Steel Forging

Uses:

Extrusion

Color:

Customized

Craft:

Forging

Power:

Electric Energy

Size:

Customizable

Use:

Aluminum Extrusion

Motor:

Servo Or Ordinary Motor

Functional:

Automatic Or Semi-automatic

Surface Treatment:

Heat Treatment

Packaging Details:

Wooden pallet

Highlight:

1100T hydraulic aluminum extrusion machine

aluminum press profile extrusion line

industrial aluminum extrusion line machine

Product Description

1100T Hydraulic Aluminum Extrusion Line Machine

High-performance core equipment for aluminum processing industry, offering exceptional productivity, reliable operational stability, and optimal balance of power output, extrusion speed, and cost-efficiency.

Product Specifications

Attribute	Value
Material	Steel Forging
Uses	Extrusion
Color	Customized
Craft	Forging
Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment

Technical Specifications

1000MT/1100UST Technical Parameters

Parameter	Value
Standard Billet Outer Diameter	Φ127mm
Standard Billet Length	400-680/750mm
Machine Extrusion Force	21Mpa 1000T(1100UST)
Mold Base Cavity Diameter	Φ250mm
Mold Base Cavity Depth	H260mm
Mechanical Size	L9500mmW3200mmH3900mm
Overall Weight	55T
Total Power	182.5KW
Main Oil Pump (Hilectro)	HP12981-G102W-R1P4
Liquid Cooling Driver	Hi300-90KW
Main Oil Pump (Germany Rexroth)	A15VSO210 variable pumps
Auxiliary Pump (Tokyo Keiki)	SQP43-60-38

Advantages of Short-Stroke Back Loading Structure

Shorter extrusion stroke reduces frame opening, increasing stress frame rigidity by 30% compared to traditional extruders
Decreased main side cylinder volume minimizes hydraulic oil usage, enhancing speed and pressure control accuracy
Elimination of gasket circulation system reduces reactive operation time and power consumption
Translation manipulator powered by servo motor contributes to 15% reduction in non-extrusion time

Application Fields

Our hydraulic aluminum extrusion machine serves diverse industries including construction, industrial trade, new energy, and photovoltaic sectors.

Construction Industry
Industrial Trade
New Energy Industry
Photovoltaic Industry

Aluminum profiles produced by this machine are used for roofing, walling, doors and windows, framing, reticulated shell structures, glass curtain walls, awnings, pedestrian bridges, interior/exterior decorative panels, partitions, ceilings, railings, and handrails. They also serve as structural components in storage containers and formwork.

Technical Characteristics

Key components feature mature structures with low failure rates
Minimal impact and vibration with reduced oil leakage potential
Fast response time with high efficiency and short non-extrusion periods
High precision with extrusion speed control accuracy of ±0.1mm
Advanced automation and intelligent production reduces operator requirements

Product Images

Frequently Asked Questions

How is the quality of Huanan Brand machine and the service life?

Huanan Brand is among China's top extrusion equipment manufacturers. Customer feedback indicates a typical machine lifespan exceeding 15 years with proper maintenance. Many well-known aluminum manufacturers are our satisfied customers.

How to choose the right type machine?

Please provide details about your products and profile sectional drawing dimensions. Our engineers will calculate the optimal machine size for your requirements.

Will Huanan provide installation service?

When the machine arrives at your facility and installation conditions are met, we dispatch technicians for installation and operator training.

What is the delivery time of Huanan Machines?

600-1000MT machines: 30 days
1250-1800MT machines: 45-60 days
2000-3000MT machines: 180 days
3000MT+ machines: 6-12 months

Complete production lines require 3-10 months depending on complexity.

What services does Huanan provide?

Huanan offers comprehensive one-station services including technical consultation and support, custom production proposals, design, manufacturing, inspection, shipping with full documentation, installation, training, and lifetime maintenance support.
