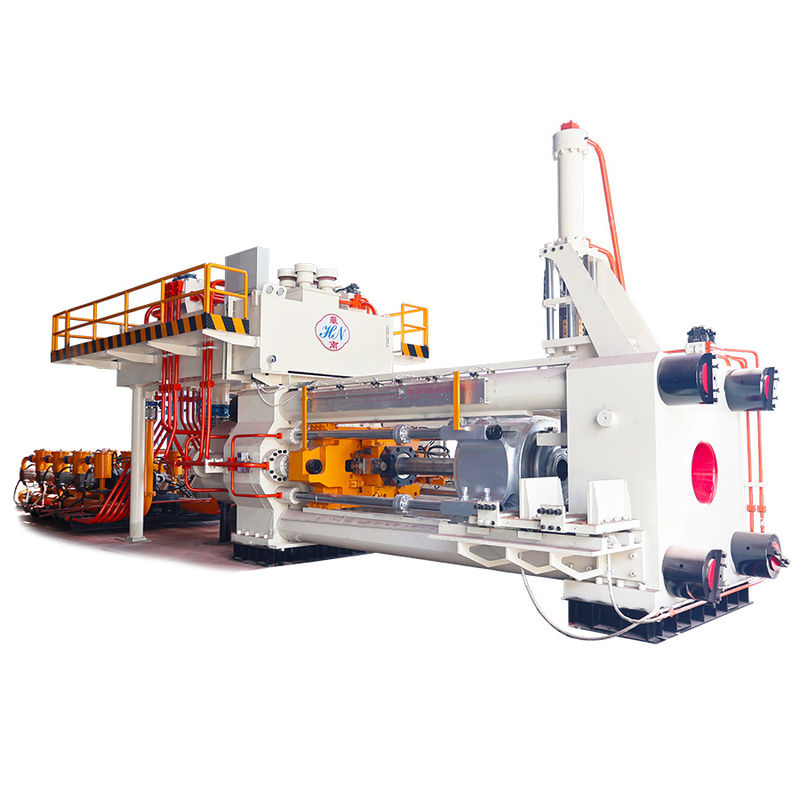

2500T Aluminum Extrusion Presses Highly Productive For Extruding Aluminium Profile

2500T Aluminum Extrusion Presses Highly Productive For Extruding Aluminium Profile

2500T Aluminum Extrusion Presses Highly Productive For Extruding Aluminium Profile

Brand Name: Huanan
Model Number: HN-2500T
MOQ: 1 pcs
Price: $792500-$904200
Payment Terms: L/C,T/T
Supply Ability: 3 pcs /3 Months
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong,China
Highlight:

2500T aluminum extrusion press

,

Photovoltaic Industry aluminum extrusion press

,

2500 Ton aluminum extrusion press machine

Product Description
Hot Sale 2500T Aluminium Extrusion Presses - Highly Productive Machine for Extruding Aluminium Profile
Advantages of Short-Stroke Back Loading Structure
  • The short-stroke extruder features a shorter extrusion stroke compared to conventional aluminum extruders, enhancing frame rigidity by 30%.
  • Reduced main side cylinder volume decreases hydraulic oil consumption, improving speed and pressure control accuracy while lowering energy consumption.
  • Elimination of gasket circulation system reduces reactive operations and production line power consumption, decreasing non-extrusion time by 15%.
  • Servo motor-driven translation manipulator further reduces non-extrusion time by an additional 15%.

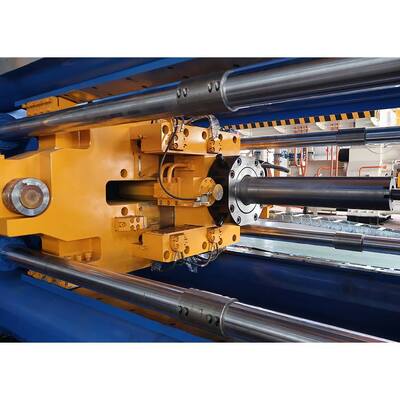

2500T Aluminum Extrusion Presses Highly Productive For Extruding Aluminium Profile 0
Application Fields
  • Construction Industry
  • Industrial Trade
  • New Energy Industry
  • Photovoltaic Industry
Aluminum profiles are extensively used in architectural applications including roofs, walls, doors, windows, frames, curtain wall systems, and decorative elements. They also serve in industrial applications such as store containers, formwork, and structural components, delivering excellent performance and durability.

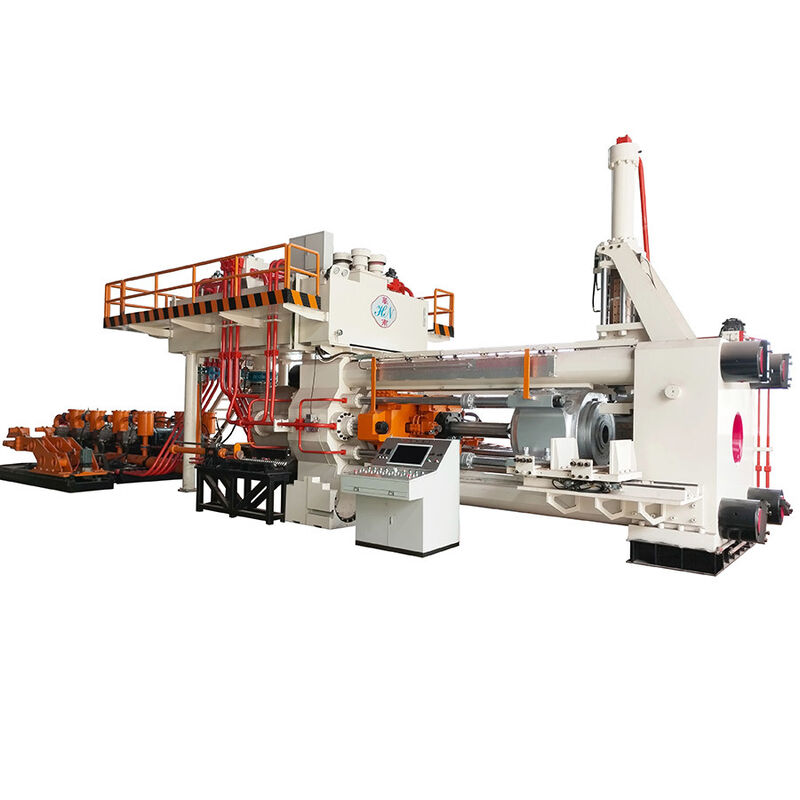

2500T Aluminum Extrusion Presses Highly Productive For Extruding Aluminium Profile 1
Technical Characteristics and Specifications
  • Critical components feature well-established designs with low failure rates
  • Minimal impact and vibration, significantly reducing oil leakage
  • Rapid response time with high efficiency and minimized non-extrusion periods
  • High precision with extrusion speed control within ±0.1mm
  • Advanced automation and intelligent production capabilities
2500MT Technical Parameters
Standard billet size: Outer diameter: Φ236mm
Length: 1150mm
Main Piston: Φ1080mm
Extrusion capacity: Machine extrusion force: 25Mpa (2515T)
Dimensions of mold base cavity: Diameter: Φ480mm
Depth: H480mm
Equipment specifications: Total Power: 850KW
Motor: Main oil pump: HP13096-G102W-R1P4 *5
Liquid cooling driver: HI200-160KW *5
Hydraulic pump: Main oil pump: A15V280 31.5MPa variable pumps
Auxiliary pump: SQP43-60-38
Shipment Pictures

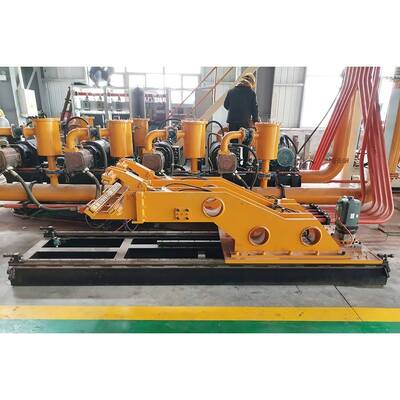

2500T Aluminum Extrusion Presses Highly Productive For Extruding Aluminium Profile 2
Workshop Show
2500T Aluminum Extrusion Presses Highly Productive For Extruding Aluminium Profile 3
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is among China's top extrusion equipment manufacturers. Customer feedback indicates a machine lifespan of 15+ years under normal conditions, with many well-known aluminum manufacturers as our clients.
Q2: How to choose the right type machine?
Provide your profile sectional drawing dimensions, and we will calculate the suitable machine size for your production needs.
Q3: Will Huanan provide installation service?
We send technicians to install equipment and train your staff upon arrival at your factory when installation conditions are met.
Q4: What is the delivery time of Huanan Machines?
  • 600-1000MT: 30 days
  • 1250-1800MT: 45-60 days
  • 2000-3000MT: 180 days
  • 3000MT+: 6-12 months
  • Complete production lines: 3-10 months
Q5: What services Huanan can do for you?
Our comprehensive service includes:
  • Technical consultation and support
  • Custom production proposals
  • Complete manufacturing and documentation services
  • Lifetime installation, training, and maintenance support
