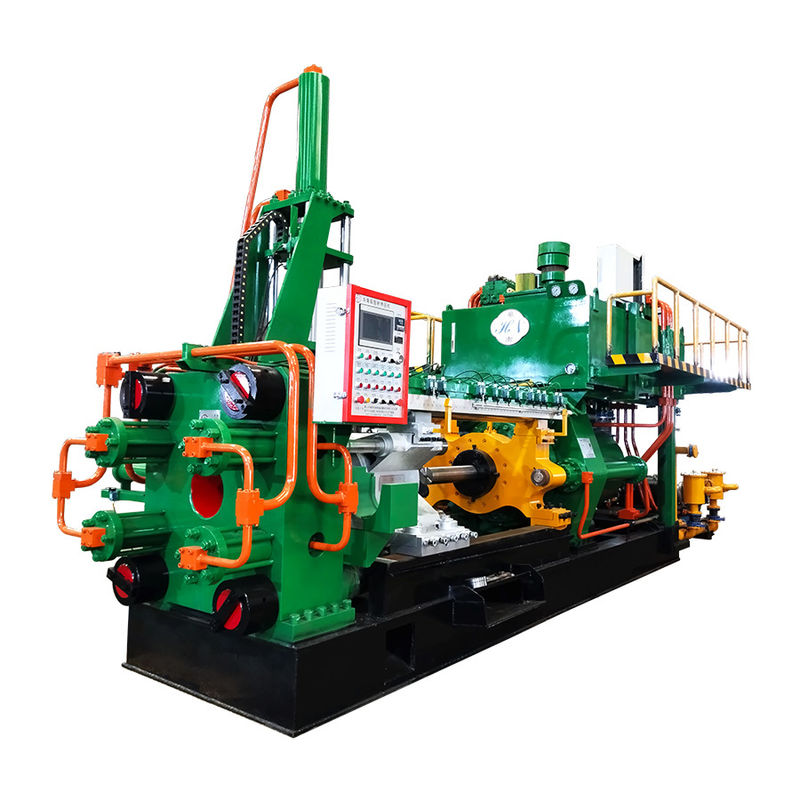

High Productivity 1000T Copper Extrusion Presses For Extruding Copper Profile

Brand Name:	Huanan
Model Number:	HN-Cu-1000T
MOQ:	1
Price:	$200000-$250000
Payment Terms:	L/C,T/T
Supply Ability:	10 pcs/3 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Material:

Steel

Technology:

Forging And Casting

Application Area:

Extrusion Equipment

Serve:

Custom

Highlight:

High Productivity Copper Extrusion Machine

1000T Copper Extrusion Machine

1000T copper extrusion press

Product Description

High Productivity To 1000T Copper Extrusion Presses for Extruding Copper Profile

Product Specifications

Material	Steel
Technology	Forging and casting
Application area	Extrusion equipment
Serve	Custom

Material and Specifications of Main Parts

Item	Specification & Materials Details
Master cylinder	35# forged steel
Piston	Φ750mm alloy chilled cast iron
Auxiliary cylinder	Φ160mm 2 pieces
Container cylinder	Φ160mm 4 pieces
Front beam	485 mm thick+15mm(table),500mm tick, material: 45# steel
Outlet	short axis 170mm x long axis 210mm
Slider base	thick 260mm 45# steel
Movable beam	thick 270mm 45# steel
Tie rods	Φ210mm 45# steel quenched and tempered
Insulation seat	ZG35
Container outside cover	5CrMnMo forged steel heat treatment
Container liner	H13 Forged Steel Heat Treatment
Stem	H13 Forged Steel Heat Treatment
Dummy block	H13 forged steel heat treatment

Advantages of Short-Stroke Back Loading Structure

The extrusion stroke of the short-stroke extruder is notably shorter than conventional extruders, resulting in a reduced frame opening. This design enhances stress frame rigidity by 30% compared to traditional extruders.
Decreased main side cylinder volume minimizes hydraulic oil usage, improving speed and pressure control accuracy while reducing pressure adjustment time and energy consumption.
Elimination of gasket circulation system reduces reactive operation time and production line power consumption, decreasing non-extrusion time by 15%.
Implementation of servo motor-powered translation manipulator contributes to 15% reduction in non-extrusion time.

Application Field

Power & Electronics Industry

Power Transmission: Primary material for wires, cables, transformers, and switches (e.g., pure copper T1, T2)
Electronic Devices: Used in printed circuit boards (PCBs), integrated circuit leads, connectors, and semiconductor components
New Energy: Copper conductors in photovoltaic systems, electromagnetic coils in wind turbines, and motors/charging stations for electric vehicles

Construction & Decoration

Architectural Structures: Copper alloys (e.g., brass, bronze) for roofing, facades, and corrosion-resistant piping systems
Decorative Arts: Copper sculptures, door handles, lighting fixtures, and furniture fittings with antibacterial properties
Plumbing Systems: Copper pipes for high-end building water supply due to antibacterial and corrosion-resistant qualities

Transportation

Automotive Industry: Radiators, brake system tubing, and electrical wiring (pure copper or copper alloys)
Rail Transit: Overhead contact wires for high-speed rail (copper-chromium alloy), train motors, and transformers
Marine & Aerospace: Seawater desalination pipes (saltwater-resistant), aircraft hydraulic systems

Industrial & Mechanical Manufacturing

Heat Exchange Equipment: Condensers, heat pipes utilizing high thermal conductivity (e.g., red copper)
Wear-Resistant Components: Bronze (e.g., tin bronze ZCuSn10P1) for bearings and gears
Chemical Equipment: Reactors, valves resistant to acids/alkalis (e.g., copper-nickel alloy B10)

Medical & Healthcare

Antimicrobial Materials: Copper ions kill bacteria, suitable for hospital door handles and medical instrument surfaces (e.g., antimicrobial copper C71000)
Medical Devices: Surgical tools, dental materials (biocompatible)

New Energy & Environmental Protection

Solar/Wind Energy: Core material for photovoltaic cell grids and wind turbine motors
Battery Technology: Copper foil current collectors in lithium-ion batteries

Technical Characteristics

Key parts (container, extrusion pad, shear blade, ingot feeder) have mature structures and low failure rate
Equipment has minimal impact and vibration, with no oil leakage issues
Fast response, high efficiency, and short non-extrusion time
High precision with extrusion speed accurately controlled (±0.1mm)
High automation and intelligent production reduces operator and maintenance requirements

Technical Data

1000T Technical Parameters
1. Standard Billet Size:
Outer diameter:	Φ120mm
Length:	150～550mm
2. Extrusion capacity:
Machine extrusion force:	21Mpa 1000T(1100UST)
3. Dimensions of mold base cavity:
Diameter:	Φ200mm
Depth:	H250mm
4. Equipment dimension
Mechanical size:	L9500mm×W3200mm×H3900mm
Overall weight:	53T
Total Power:	360KW (including extrusion cylinder heater 1.5KW×15=22.5KW)
5. Motor
Main Motor	110KW-6pole dual axis / motor 2 sets 110KW-6pole dual axis / motor 1 sets
6. Hydraulic pump
Main oil pump: (Germany Rexroth)	A15VSO280 variable pumps
Auxiliary pump:(Tokyo Keiki)	SQP43-60-38 2 sets

Product Images

Frequently Asked Questions

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to customer feedback, under normal conditions, the machine lifespan reaches 15+ years. Many well-known aluminum/copper/silver manufacturers are our customers.

Q2: How to choose the right type machine?

Please provide details about your products and profile sectional drawing dimensions. We will calculate the suitable machine size based on your specifications.

Q3: Will Huanan provide installation service?

When the extrusion machine arrives at your factory and meets installation conditions, we will send technicians for installation and provide employee training on proper equipment operation.

Q4: What is the delivery time of Huanan Machines?

Small machines (600-1000MT): 30 days
Medium machines (1250-1800MT): 45-60 days
Large machines (2000-3000MT): 180 days
Extra large machines (3000MT+): 6-12 months
Complete production lines: 3-10 months

Q5: What services Huanan can do for you?

Huanan provides comprehensive one-stop services including:
- Technical consultation and support
- Complete production proposals tailored to customer needs
- Design, manufacturing, inspection, shipping, and documentation services
- Installation, technology training, and lifetime maintenance support
