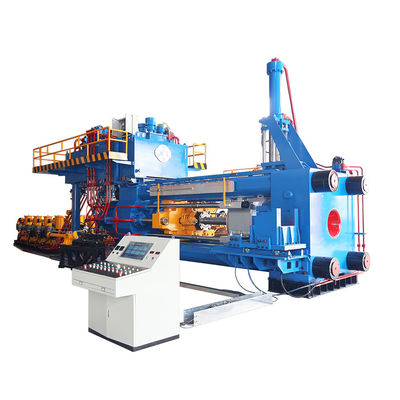

2200T Copper Extruder Of Copper Profile Extrusion Line Machine

Brand Name:	Huanan
Model Number:	HN-Cu-2200T
MOQ:	1
Price:	$447600-$479400
Payment Terms:	L/C,T/T
Supply Ability:	10 pcs/3 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Material:

Steel

Technology:

Forging And Casting

Application Area:

Extrusion Equipment

Serve:

Custom

Highlight:

2200T Copper Extrusion Machine

Copper Extrusion Machine Steel

Steel copper extruder

Product Description

2200T Copper Extruder of Copper Profile Extrusion Line Machine

Product Specifications

Material	Steel
Technology	Forging and casting
Application area	Extrusion equipment
Serve	Custom

Material and Specifications of Main Parts

Item	Specification & Materials Details
Master cylinder	35# forged steel
Piston	Φ750mm alloy chilled cast iron
Auxiliary cylinder	Φ160mm 2 pieces
Container cylinder	Φ160mm 4 pieces
Front beam	485 mm thick+15mm(table),500mm thick, material: 45# steel
Outlet	short axis 170mm x long axis 210mm
Slider base	thick 260mm 45# steel
Movable beam	thick 270mm 45# steel
Tie rods	Φ210mm 45# steel quenched and tempered
Insulation seat	ZG35
Container outside cover	5CrMnMo forged steel heat treatment
Container liner	H13 Forged Steel Heat Treatment
Stem	H13 Forged Steel Heat Treatment
Dummy block	H13 forged steel heat treatment

Advantages of Short-Stroke Back Loading Structure

The extrusion stroke is notably shorter than conventional extruders, increasing stress frame rigidity by 30%
Reduced main side cylinder volume minimizes hydraulic oil usage, enhancing speed and pressure control accuracy
Elimination of gasket circulation system reduces reactive operation time and power consumption by 15%
Translation manipulator powered by servo motor decreases non-extrusion time by 15%

Application Field

Copper is widely used in various industries due to its excellent electrical conductivity, thermal conductivity, ductility, corrosion resistance, and antibacterial properties.

Power & Electronics Industry: Wires, cables, transformers, PCBs, and electric vehicle components
Construction & Decoration: Roofing, facades, piping systems, and decorative elements
Transportation: Automotive radiators, rail contact wires, marine applications
Industrial Manufacturing: Heat exchangers, wear-resistant components, chemical equipment
Medical & Healthcare: Antimicrobial surfaces, surgical tools, dental materials
New Energy: Solar cells, wind turbines, battery technology
Other Applications: Currency, military components, agricultural fungicides

Technical Characteristics

Mature structure with low failure rate for key components
Minimal impact and vibration with leak-resistant design
Fast response with high efficiency and short non-extrusion time
High precision with extrusion speed control (±0.1mm)
Automated and intelligent production reduces operator requirements

Technical Data

2200T Technical Parameters
Standard Billet Size:	Outer diameter: Φ203mm, Length: 400-1100mm
Main Piston:	Φ920mm
Machine extrusion force:	25Mpa 2208T
Dimensions of mold base cavity:	Diameter: Φ480mm, Depth: H480mm
Equipment dimension:	L10500mm x W7800mm x H5200mm
Overall weight:	185T
Total Power:	524KW

Shipment Pictures

Workshop Show

Frequently Asked Questions

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. Under normal conditions, the machine lifespan reaches 15+ years, with many well-known aluminum/copper/silver manufacturers as our customers.

Q2: How to choose the right type machine?

Provide your profile sectional drawing dimensions, and we will calculate the suitable machine size for your production needs.

Q3: Will Huanan provide installation service?

We send technicians for installation and employee training when equipment arrives at your factory and meets installation conditions.

Q4: What is the delivery time of Huanan Machines?

Delivery times range from 30 days for 600-1000MT machines to 180 days for 2000-3000MT models, with complete production lines taking 3-10 months.

Q5: What services Huanan can do for you?

We provide comprehensive services including technical consultation, production proposals, manufacturing, shipping documentation, installation, training, and lifetime maintenance support.
