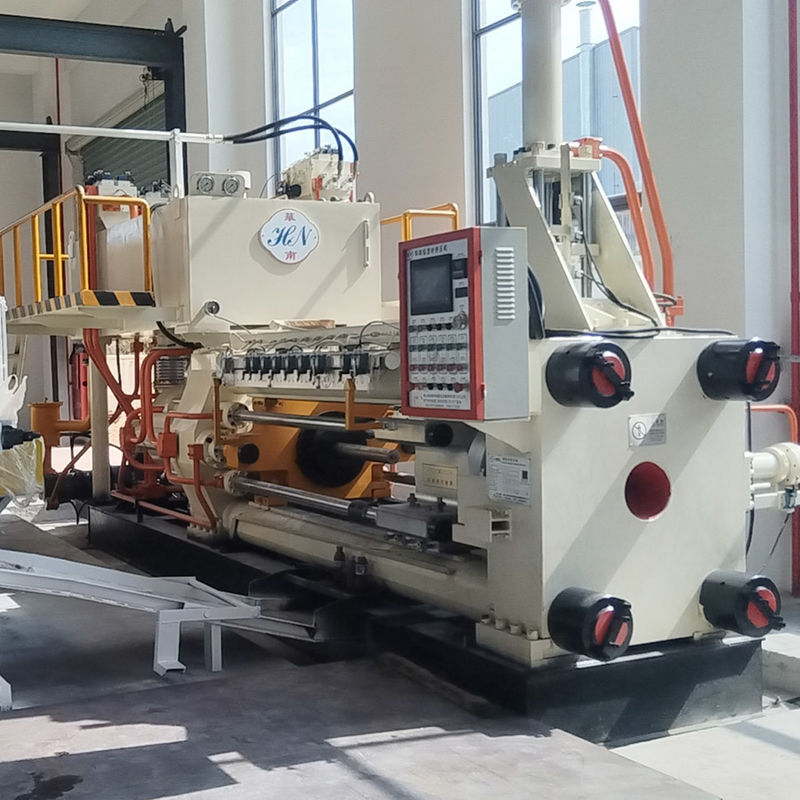

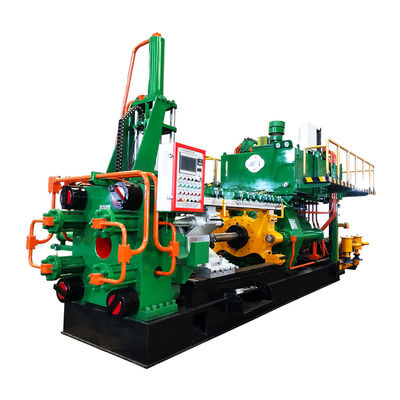

Hydraulic 700T Copper Brass Extrusion Press For Making Copper Tubes Wire Pipes

Brand Name:	Huanan
Model Number:	HN-Cu-700T
MOQ:	1
Price:	$85100-$106000
Payment Terms:	L/C,T/T
Supply Ability:	10 pcs/3 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Material:

Steel

Technology:

Forging And Casting

Application Area:

Extrusion Equipment

Serve:

Custom

Highlight:

Hydraulic Copper Extrusion Machine

700T Copper Extrusion Machine

700T copper extrusion

Product Description

Hydraulic 700T Copper Brass Extrusion Press for Making Copper Tubes, Wire, Pipes

Material:	Steel
Technology:	Forging and casting
Application area:	Extrusion equipment
Serve:	Custom

Material and Specifications of Main Parts

Item	Specification & Materials Details
Master cylinder:	35# forged steel
Piston:	Φ620mm alloy chilled cast iron
Auxiliary cylinder:	Φ140mm 2 pieces
Container cylinder:	Φ140mm 4 pieces
Front beam:	360 mm thick, material: 45# forged steel
Outlet:	short axis 140mm x long axis 170mm
Slider base:	thick 250mm 45# steel
Movable beam:	thick 215mm 45# steel
Tie rods:	Φ170mm 45# steel quenched and tempered
Insulation seat:	ZG35
Container outside cover:	5CrMnMo forged steel heat treatment
Container liner:	H13 Forged Steel Heat Treatment
Stem:	H13 Forged Steel Heat Treatment
Dummy block:	H13 forged steel heat treatment

Advantages of Short-Stroke Back Loading Structure

The extrusion stroke is notably shorter than conventional extruders, resulting in a reduced frame opening. This design enhances stress frame rigidity by 30% compared to traditional extruders.
Decreased main side cylinder volume minimizes hydraulic oil usage, improving speed and pressure control accuracy while shortening pressure adjustment time. This reduces energy consumption and mitigates oil impact during pressure relief.
Eliminating the gasket circulation system reduces reactive operation time and production line power consumption, decreasing non-extrusion time by 15%.
Translation manipulator powered by a servo motor contributes to a 15% reduction in non-extrusion time.

Application Field

Power & Electronics Industry: Power transmission (wires, cables, transformers), electronic devices (PCBs, connectors), new energy applications (photovoltaic systems, EV components).

Construction & Decoration: Architectural structures (roofing, piping), decorative arts (sculptures, fixtures), plumbing systems.

Transportation: Automotive (radiators, brake systems), rail transit (contact wires), marine & aerospace applications.

Industrial & Mechanical Manufacturing: Heat exchange equipment, wear-resistant components, chemical equipment.

Medical & Healthcare: Antimicrobial materials, medical devices and surgical tools.

New Energy & Environmental Protection: Solar/wind energy components, battery technology.

Other Applications: Currency, military/aerospace components, agricultural fungicides.

Technical Characteristics

Key parts (container, extrusion pad, shear blade) have mature structures with low failure rates
Minimal impact and vibration with reduced oil leakage potential
Fast response, high efficiency, and short non-extrusion time
High precision with extrusion speed control accuracy of ±0.1mm
High automation and intelligent production reduces operator requirements

700MT/770UST Technical Parameters

Parameter	Value
Standard Billet Size (Outer diameter)	Φ100mm
Standard Billet Size (Length)	550mm
Machine extrusion force	22Mpa 729.7T(802UST)
Mold base cavity diameter	Φ220mm
Mold base cavity depth	H250mm
Mechanical size	L7950mm×W3200mm×H3550mm
Overall weight	33T
Total Power	103KW

Shipment Pictures

Workshop Show

Frequently Asked Questions

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. Under normal conditions, the machine lifespan reaches 15+ years. Many well-known aluminum/copper/silver manufacturers are our customers.

Q2: How to choose the right type machine?

Please provide your product details and profile sectional drawing dimensions. We will calculate the suitable machine size based on your requirements.

Q3: Will Huanan provide installation service?

When the machine arrives and meets installation conditions, we send technicians for installation and provide employee training on proper equipment use.

Q4: What is the delivery time of Huanan Machines?

600-1000MT: 30 days; 1250-1800MT: 45-60 days; 2000-3000MT: 180 days; 3000MT+: 6-12 months. Complete production lines require 3-10 months.

Q5: What services Huanan can do for you?

We provide comprehensive services including technical consultation, production proposals, design/manufacturing, shipping documentation, installation, training, and lifetime maintenance support.
