High Productivity 3400T Aluminium Extrusion Machine For Aluminium Extrusion Press

High Productivity 3400T Aluminium Extrusion Machine For Aluminium Extrusion Press

High Productivity 3400T Aluminium Extrusion Machine For Aluminium Extrusion Press

Brand Name: Huanan
Model Number: HN-3400T
MOQ: 1 pcs
Price: $1240000-$1270400
Payment Terms: L/C,T/T
Supply Ability: 3pcs\ 3Months
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong,China
Highlight:

3400T Aluminum Extrusion Machine

,

High Productivity Aluminum Extrusion Machine

,

3400T aluminum extrusion equipment

Product Description
High Productivity 3400T Aluminium Extrusion Machine For Aluminium Extrusion Press
Material and Specifications of Main Parts
Item Specification & Materials Details
Billet size Φ254* L1250mm
Master cylinder 35# forged steel
Piston Φ1180mm 35 forged steel cladding 2Cr13 steel strip
Auxiliary cylinder Φ280/180mm
Maximum opening size of front beam pressure pad Long axis 410 X Ø320 (can be customized)
Insulation seat ZG35
Container outside cover 5CrMnMo forged steel heat treatment
Container liner H13 Forged Steel Heat Treatment
Stem H13 Forged Steel Heat Treatment
Dummy block H13 forged steel heat treatment
Advantages of Short-Stroke Back Loading Structure
  • Enhanced rigidity with 30% improvement over traditional extruders due to reduced extrusion stroke
  • Lower hydraulic oil consumption with improved speed and pressure control accuracy
  • 15% reduction in non-extrusion time by eliminating gasket circulation system
  • Additional 15% decrease in non-extrusion time through servo motor-driven translation manipulator

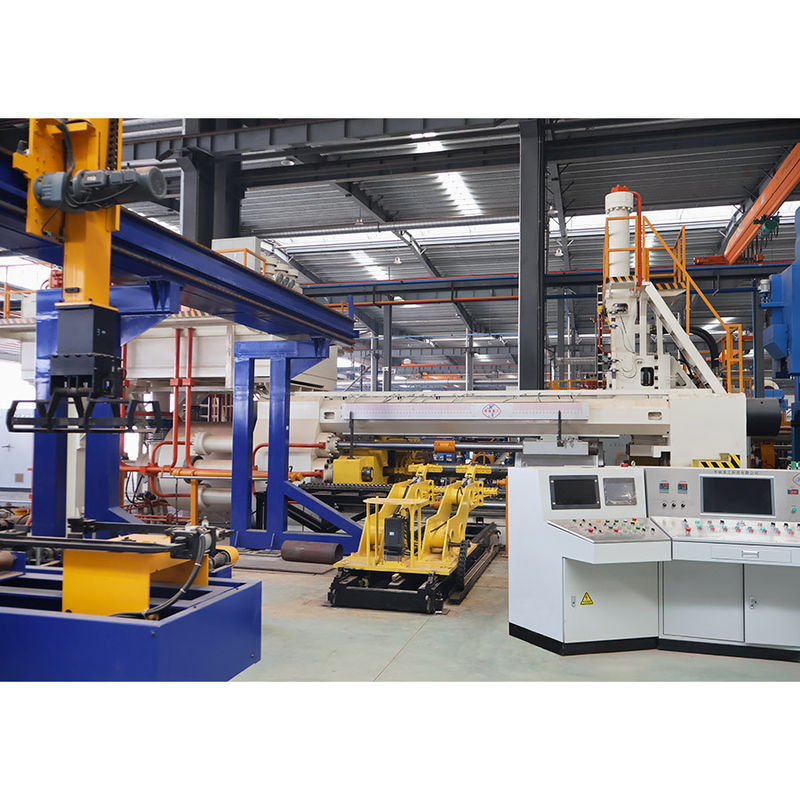

High Productivity 3400T Aluminium Extrusion Machine For Aluminium Extrusion Press 0
Application Fields
  • Construction Industry
  • Industrial Trade
  • New Energy Industry
  • Photovoltaic Industry

Aluminum profiles are extensively used in architectural applications including roofs, walls, doors, windows, structural frames, curtain wall systems, and decorative elements. They also serve critical roles in industrial structures, store containers, and formwork systems.

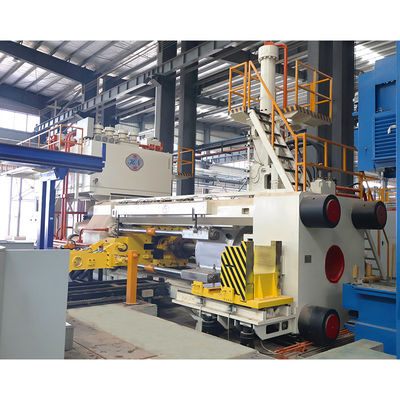

High Productivity 3400T Aluminium Extrusion Machine For Aluminium Extrusion Press 1
Technical Characteristics and Specifications
  • Low failure rate with well-designed critical components (container, extrusion pad, shear blade, ingot feeder)
  • Minimal impact and vibration operation with reduced oil leakage risk
  • High responsiveness with short non-extrusion periods
  • Precision extrusion with ±0.1mm speed control accuracy
  • Advanced automation reduces operator requirements
Product Demonstration
High Productivity 3400T Aluminium Extrusion Machine For Aluminium Extrusion Press 2 High Productivity 3400T Aluminium Extrusion Machine For Aluminium Extrusion Press 3
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is among China's top extrusion equipment manufacturers. Customer feedback indicates a typical machine lifespan exceeding 15 years under normal operation, with many well-known aluminum manufacturers as our clients.

Q2: How to choose the right type machine?

Provide your profile sectional drawing dimensions and product specifications. Our engineers will calculate and recommend the optimal machine size for your requirements.

Q3: Will Huanan provide installation service?

Yes, we dispatch technicians to install equipment and train your staff upon arrival at your facility when installation conditions are met.

Q4: What is the delivery time of Huanan Machines?

Delivery times vary by machine size: 600-1000MT (30 days), 1250-1800MT (45-60 days), 2000-3000MT (180 days), 3000MT+ (6-12 months). Complete production lines require 3-10 months.

Q5: What services Huanan can do for you?

We provide comprehensive one-stop services including technical consultation, production proposals, complete manufacturing process support, shipping documentation, installation, lifetime maintenance, and operator training.
