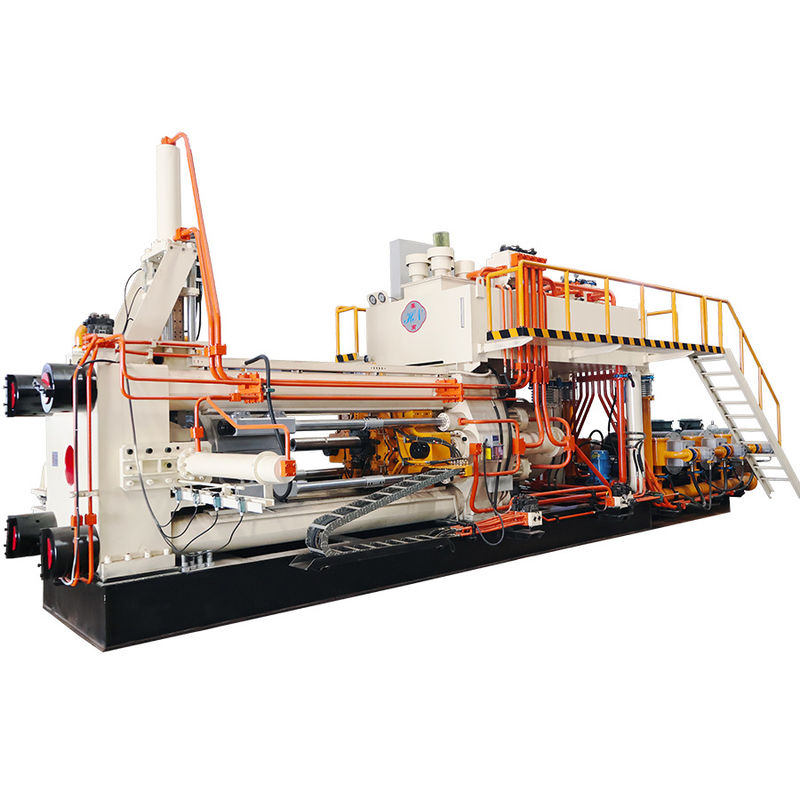

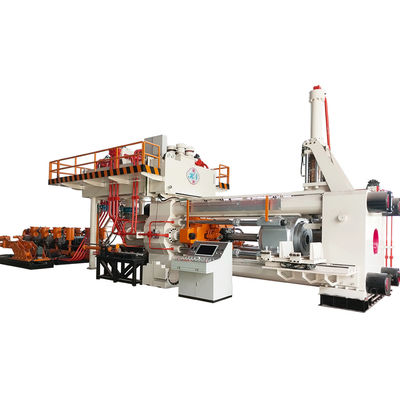

High Quality Small Model 1100T Silver Extrusion Machine For Silver Profile

The silver extruder is specialized equipment that utilizes a high-pressure hydraulic system to drive dies for extruding silver ingots (or silver alloys) into various forms including tubes, rods, wires, and special-shaped materials. This machine is extensively used in jewelry production, electronics manufacturing, and industrial silver parts fabrication.

• Feeding: Silver billet is heated to plastic deformation temperature (200-400℃ for pure silver)
• Extrusion: Hydraulic cylinder pushes extrusion rod to form silver through die
• Cooling/Cutting: Formed silver material is cut to fixed length after water or air cooling

• 30% increased frame rigidity compared to conventional extruders due to reduced extrusion stroke and frame opening
• Minimized hydraulic oil usage enhances speed/pressure control accuracy and reduces energy consumption
• 15% reduction in non-extrusion time by eliminating gasket circulation system
• Additional 15% decrease in non-extrusion time through servo motor-powered translation manipulator

Products: Silver bracelet hollow tubes, silver wires (Φ0.5-5mm), embossed silver sheets
Advantages: Seamless one-piece molding with surface finish Ra≤0.8μm

Products: Silver contacts, conductive silver sheets, vacuum solder
Advantages: High density (≥99% theoretical density) with conductivity ≥100% IACS

Products: Silver welding rods, nuclear industry shielding materials, special-shaped silver parts
Advantages: Supports complex cross-sections including internal tooth silver tubes and porous silver plates

• Hydraulic system: Stable pressure (200-1500T) with variable pump energy-saving design
• Extrusion cylinder: High temperature resistant alloy steel (H13) with mirror polished inner wall
• Mold system: Carbide/tungsten steel material with quick change design
• Heating module: Resistance/induction heating with ±2℃ temperature control
• Control system: PLC+touch screen with process parameter storage capability
