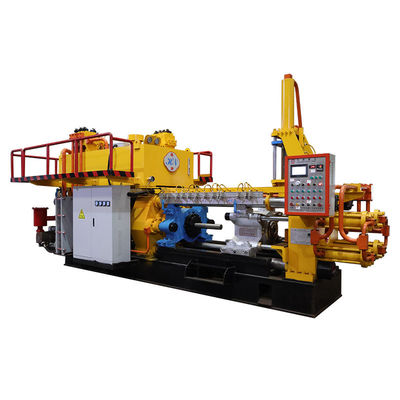

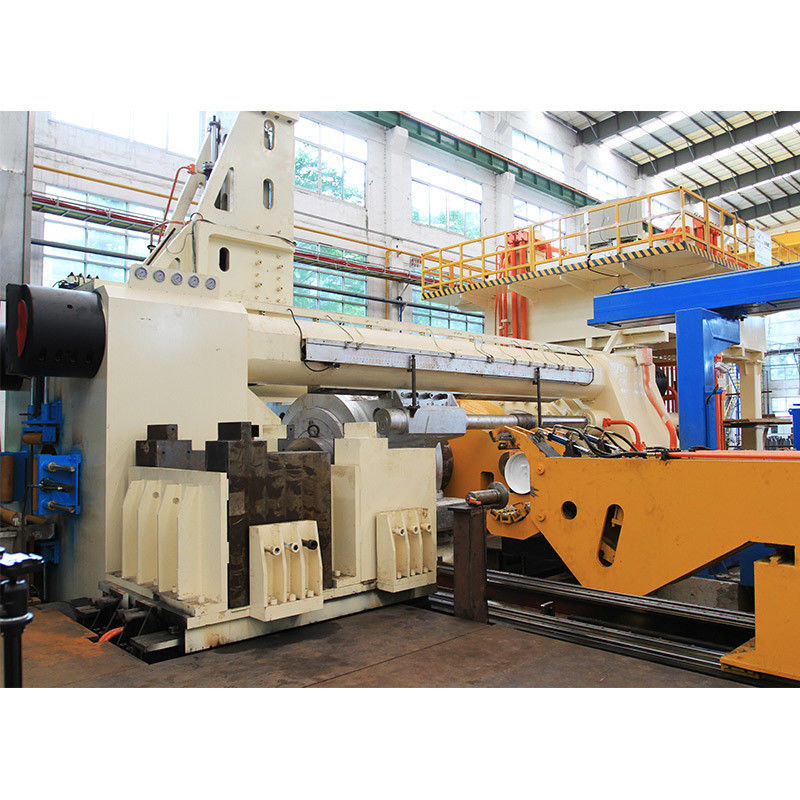

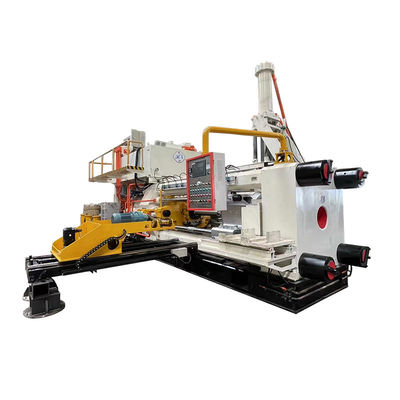

7500MT Hydraulic Aluminium Extrusion Press Machine For Extruding Aluminum Profile

Material and specifications of main parts

Advantages of short-stroke back loading structure

1. The short-stroke extruder features a shorter extrusion stroke compared to conventional extruders, resulting in a reduced frame opening and increased stress frame rigidity by 30%.

2. The main side cylinder's volume has been minimized, decreasing hydraulic oil usage and enhancing speed and pressure control accuracy. This design shortens the pressure build-up and release times, lowers energy consumption, and reduces the impact of oil during pressure relief.

3. By eliminating the gasket circulation system, reactive operation time is decreased, and the production line's power consumption is reduced, cutting non-extrusion time by 15%.

4. The use of a servo motor-driven translation manipulator further reduces non-extrusion time by an additional 15%.

Application Field

1.Construction Industry

2.Industrial Trade

3.New Energy Industry

4.Photovoltaic Industry

Our hydraulic aluminum extrusion machine is versatile and finds application across diverse industries. Aluminum profiles produced by this machine are essential for roofs, walls, doors, windows, frames, lattice shell structures, grid systems, glass curtain wall supports, awnings, pedestrian bridges, interior and exterior decorative panels, partitions, ceilings, suspended ceilings, railings, and handrails in both industrial and civil buildings. Additionally, these profiles are integral to constructing materials, structural components, storage containers, and formwork, delivering consistently favorable outcomes in construction projects.

Technical Characteristics and Specification

• The essential components of our hydraulic aluminum extrusion machine, including the container, extrusion pad, shear blade, and ingot feeder, are characterized by mature designs and a low incidence of failures.

• This Aluminum extrusion equipment operates with minimal impact and vibration, ensuring it is highly resistant to oil leakage.

• It delivers rapid response times, high operational efficiency, and minimizes non-extrusion periods.

• Precision is a hallmark feature, with the ability to accurately control extrusion speeds to within ±0.1mm.

• Featuring advanced automation and intelligent production capabilities, our Aluminum extrusion equipment significantly reduces the demands on operators and maintenance personnel.

Technical Date

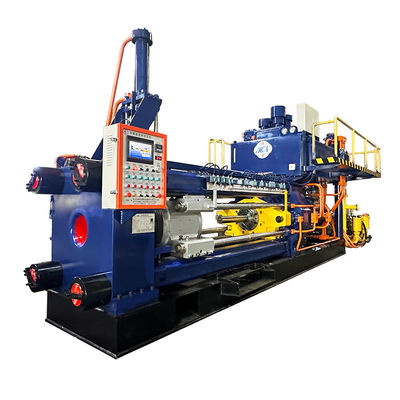

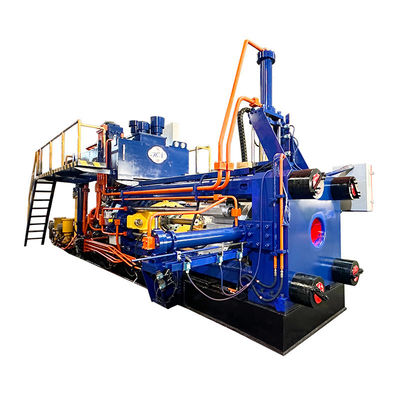

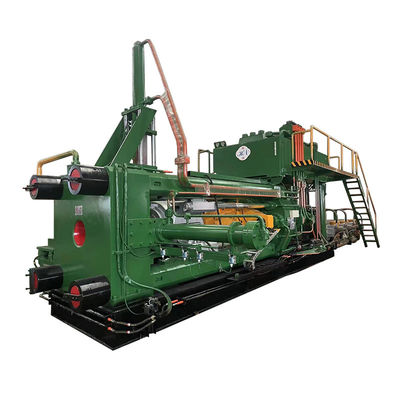

Shipment Pictures

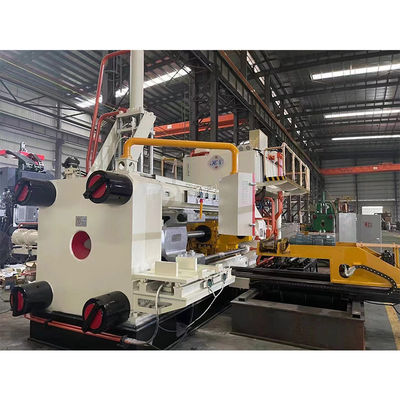

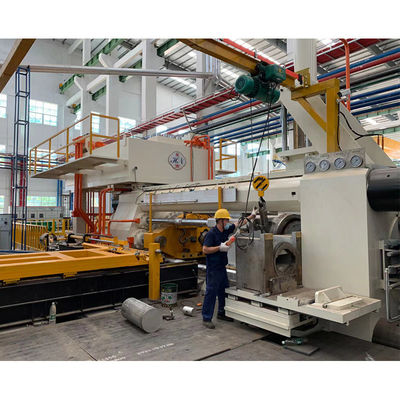

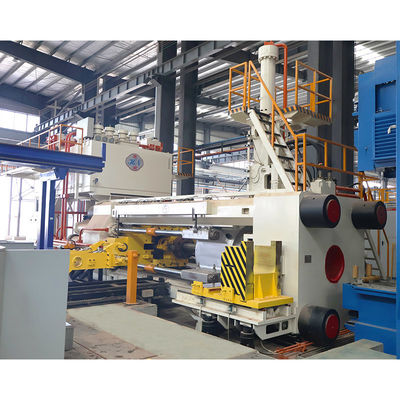

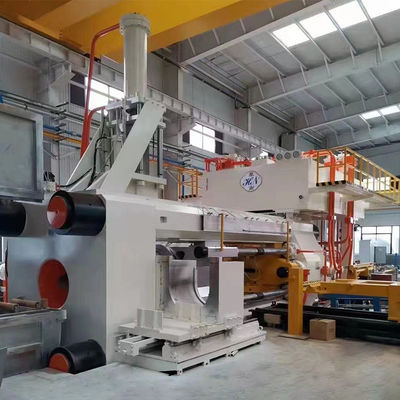

Workshop show

FAQ

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to the feedback of old customers, under normal circumstances, the life of the machine can reach 15 years or more. Many well-know aluminum manufacturers are also our cooperative customers.

Q2: How to choose the right type machine ?

Please let us know the types of products you manufacture. Provide the dimensions of the profile sectional drawing, and we will calculate the appropriate machine size based on your specifications.

Q3. Will Huanan provide installation service?
Upon delivery of the aluminum extrusion machine to the customer's factory, and once installation conditions are met, we will dispatch technicians to the site to install the machine and train the customer's employees on its proper operation.

Q4:What is the delivery time of Huanan Machines?
For ordinary small-sized machine such as 600-1000MT, 30 days; middle-sized machine such as1250-1800MT, 45-60 days, for big-sized machine such as 2000-3000MT, 180 days.More than 3000MT, half year to one year delivery date. We could also design and make the whole production line for our customer, around 3-10 months.

Q5: What services Huanan can do for you :

Huanan offers comprehensive one-stop services, covering pre-sales, sales, and after-sales support:

• Technical consultation and assistance
• Developing tailored production proposals based on customer needs
• Services including design, manufacturing, inspection, uploading, shipping, and providing all necessary original documents
• Installation, technology training, ongoing support, and lifetime maintenance
