Factory Supply Hydraulic 1250T Aluminum Extrusion Line for The Manufacture of Aluminum Products

Factory Supply Hydraulic 1250T Aluminum Extrusion Line for The Manufacture of Aluminum Products

Brand Name:	Huanan
Model Number:	HN-1250T
MOQ:	1 Pcs
Price:	$159400-$182000
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Material:

Steel Forging

Uses:

Extrusion

Color:

Customized

Craft:

Forging

Power:

Electric Energy

Size:

Customizable

Use:

Aluminum Extrusion

Motor:

Servo Or Ordinary Motor

Functional:

Automatic Or Semi-automatic

Surface Treatment:

Heat Treatment

Packaging Details:

Wooden pallet

Highlight:

1250T hydraulic aluminum extrusion line

aluminum extrusion machine for manufacturing

factory supply aluminum extrusion line

Product Description

Factory Supply Hydraulic 1250T Aluminum Extrusion Line

This heavy-duty industrial aluminum extrusion machine is custom-engineered to fabricate high-quality aluminum profiles for architectural doors, windows, photovoltaic frame systems, and industrial metal pipelines. Featuring ultra-stable running status, superior forming performance, and long service operational reliability, our industrial extrusion press serves as the optimal production equipment for full-range aluminum profile manufacturing scenarios.

The 1250-ton aluminum extrusion press is our flagship core model, independently developed by China's leading professional aluminum extrusion machinery manufacturer. Delivering industry-top industrial-grade wear resistance and comprehensive superior performance, this precision extrusion equipment is tailor-made for mass production of medium and large-size high-precision aluminum alloy profiles.

Product Specifications

Material	Steel Forging
Uses	Extrusion
Color	Customized
Craft	Forging
Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment

Technical Data

Standard Billet Size (Outer diameter)	Φ127mm
Standard Billet Size (Length)	400-680/750mm
Machine extrusion force	1250T
Dimensions of mold base cavity (Diameter)	Φ250mm
Dimensions of mold base cavity (Depth)	H260mm
Mechanical size	L9500mm×W3200mm×H3900mm
Overall weight	55T
Total Power	182.5KW
Main oil pump (Hilectro brand)	HP12981-G102W-R1P4
Liquid cooling driver	Hi300-90KW
Main oil pump (Germany Rexroth)	A15VSO210 variable pumps
Auxiliary pump (Tokyo Keiki)	SQP43-60-38

Advantages of Short-Stroke Back Loading Structure

Extrusion stroke is notably shorter than conventional extruders, increasing stress frame rigidity by 30%
Reduced main side cylinder volume minimizes hydraulic oil usage, enhancing speed and pressure control accuracy
Eliminating gasket circulation system reduces reactive operation time and power consumption by 15%
Translation manipulator with servo motor decreases non-extrusion time by 15%

Application Fields

Our hydraulic aluminum extrusion machine is versatile and finds applications across various industries including construction, industrial trade, new energy, and photovoltaic sectors. The aluminum profiles produced serve diverse purposes such as:

Building components (roofing, walling, doors, windows)
Structural elements (framing, reticulated shells, grid structures)
Architectural features (glass curtain walls, awnings, pedestrian bridges)
Interior/exterior decoration (panels, partitions, ceilings, railings)
Industrial applications (storage containers, formwork, structural components)

Technical Characteristics

Key components (container, extrusion pad, shear blade, ingot feeder) feature mature structures with low failure rates
Minimal impact and vibration with reduced oil leakage potential
Fast response time with high efficiency and short non-extrusion periods
High precision with extrusion speed control accuracy of ±0.1mm
Advanced automation and intelligent production reduces operator requirements

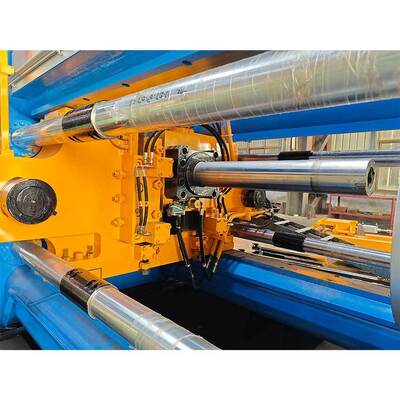

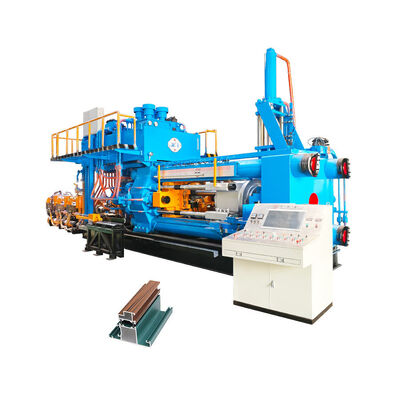

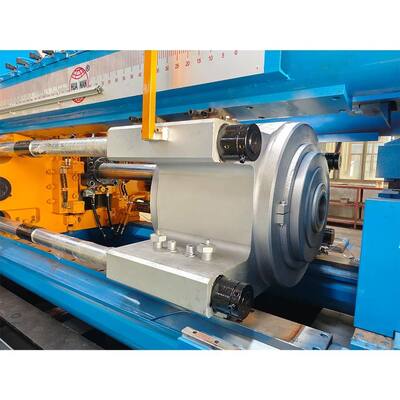

Product Images

Frequently Asked Questions

How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to customer feedback, under normal conditions the machine lifespan exceeds 15 years, with many well-known aluminum manufacturers among our clients.

How to choose the right type machine?

Please provide your profile sectional drawing dimensions. We will calculate the appropriate machine size based on your specifications.

Will Huanan provide installation service?

When installation conditions are met, we send technicians for on-site installation and operator training.

What is the delivery time of Huanan Machines?

600-1000MT: 30 days
1250-1800MT: 45-60 days
2000-3000MT: 180 days
3000MT+: 6-12 months
Complete production lines: 3-10 months

What services Huanan can do for you?

Huanan provides comprehensive one-stop services including technical consultation, production proposals, design/manufacturing, shipping documentation, installation, training, and lifetime maintenance support.
