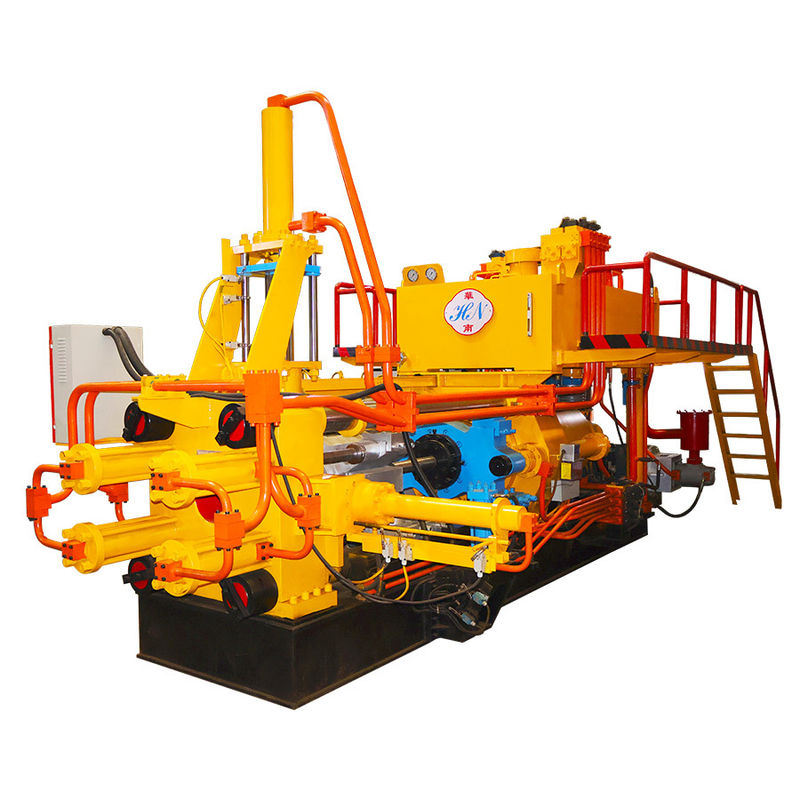

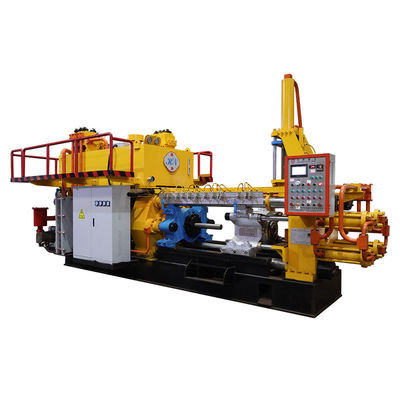

600T Aluminum Extruder Machine Of Aluminum Extrusion Line

Brand Name:	Huanan
Model Number:	HN-600T
MOQ:	1 Pcs
Price:	$86600-$94600
Payment Terms:	T/T,L/C
Supply Ability:	5 Pcs/ 3 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Highlight:

600T aluminum extruder machine

600 ton aluminum extruder machine

600T aluminum profile machine

Product Description

600T Aluminum Extruder Machine Of Aluminum Extrusion Line

Material and Specifications of Main Parts

Item	Specification & Materials Details
Master cylinder:	35# forged steel
Piston:	Φ580mm alloy chilled cast iron
Auxiliary cylinder:	Φ140mm 2 pieces
Container cylinder:	Φ140mm 4 pieces
Front beam:	350 mm thick, material: 45# forged steel
Outlet:	short axis 140mm x long axis 120mm
Slider base:	thick 200mm 45# steel
Movable beam:	thick 200mm 45# steel
Tie rods:	Φ155mm 45# steel quenched and tempered
Insulation seat:	ZG35
Container outside cover:	5CrMnMo forged steel heat treatment
Container liner:	H13 Forged Steel Heat Treatment
Stem:	H13 Forged Steel Heat Treatment
Dummy block:	H13 forged steel heat treatment

Advantages of Short-Stroke Back Loading Structure

Automatic aluminum extrusion press machine with shorter extrusion stroke increases frame rigidity by 30%
Reduced main side cylinder volume lowers hydraulic oil consumption while improving speed and pressure control
Elimination of gasket circulation system reduces reactive operation time and power consumption by 15%
Servo motor-driven translation manipulator further decreases non-extrusion time by 15%

Application Field

This automatic aluminum extrusion press machine produces various aluminum profiles used in:

Construction Industry (roofs, walls, doors, windows, frames)
Industrial Trade
New Energy Industry
Photovoltaic Industry

Applications include structural components, decorative panels, partitions, ceilings, railings, and construction formwork.

Technical Characteristics and Specification

Mature structure with low failure rate for critical components
Minimal impact and vibration reduces oil leakage likelihood
Rapid response times with high efficiency and minimal non-extrusion periods
Precision extrusion speed control within ±0.1mm range
High automation and intelligent production capabilities

Technical Data

600MT/660UST Technical Parameters
1. Standard Billet Size:
Outer diameter:	Φ90mm
Length:	500mm
2. Extrusion capacity:
Machine extrusion force:	21Mpa 617T(678UST)
3. Dimensions of mold base cavity:
Diameter:	Φ190mm
Depth:	H200mm
4. Equipment dimension
Mechanical size:	L7000mm×W2900mm×H3200mm
Overall weight:	26T
Total Power:	83KW
5. Motor
Main oil pump: (Hilectro brand)	HP12981-G102W-R1P4
Liquid cooling driver	Hi300-90KW
6. Hydraulic pump
Main oil pump: (Germany Rexroth)	A15VSO175 variable pumps
Auxiliary pump:(Tokyo Keiki)	SQP43-60-38

Shipment Pictures

Workshop Show

Frequently Asked Questions

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best automatic aluminum extrusion equipment manufacturers in China. According to customer feedback, the machine's lifespan typically reaches 15 years or more under normal conditions, with many well-known aluminum manufacturers as our clients.

Q2: How to choose the right type machine?

Please provide details about your products and profile sectional drawing dimensions. We will calculate and recommend the suitable machine size based on your specifications.

Q3: Will Huanan provide installation service?

When the machine arrives at your factory and meets installation conditions, we will send technicians for installation and provide training for your employees on proper equipment operation.

Q4: What is the delivery time of Huanan Machines?

Small machines (600-1000MT): 30 days
Medium machines (1250-1800MT): 45-60 days
Large machines (2000-3000MT): 180 days
Machines over 3000MT: 6 months to 1 year

We can also design and manufacture complete production lines (3-10 months).

Q5: What services Huanan can do for you:

Huanan provides comprehensive one-station services including:

Technical consultation and support
Custom production proposals
Complete manufacturing and documentation services
Installation, training, and lifetime maintenance support
