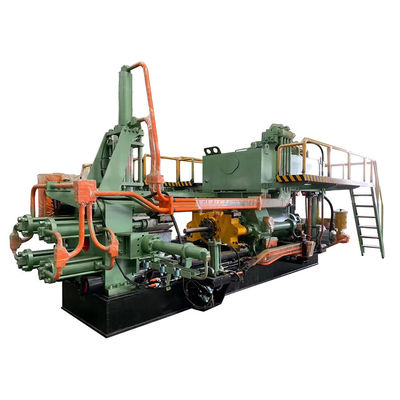

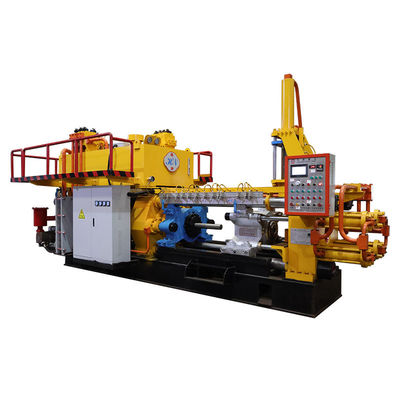

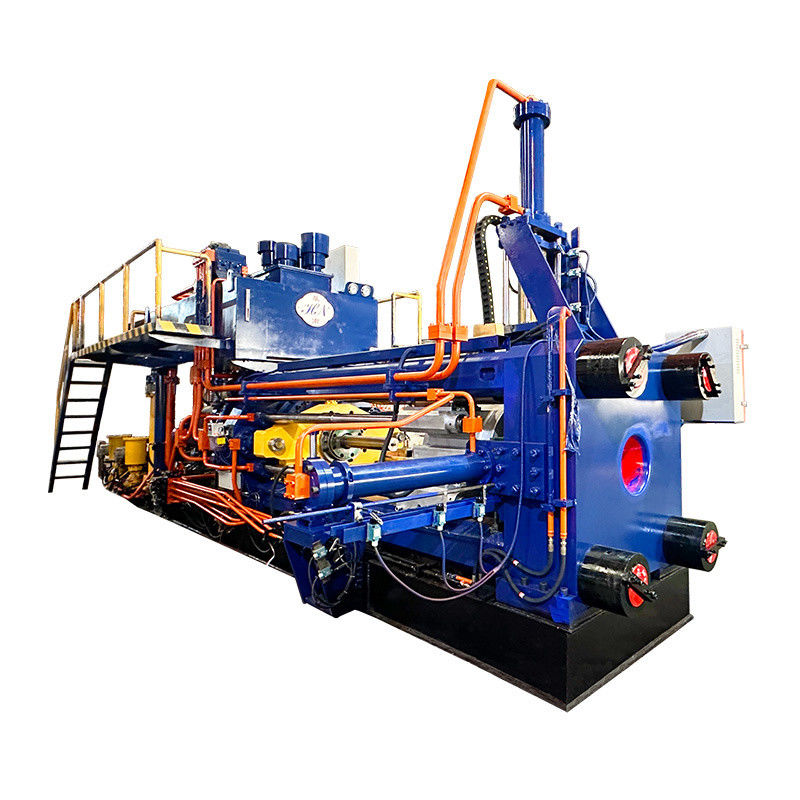

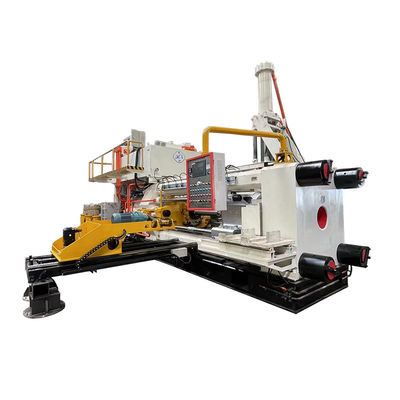

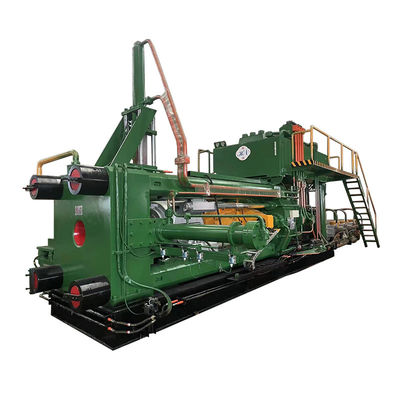

1000MT High Speed Hydraulic Aluminum Extrusion Machine

Material and specifications of main parts

Advantages of short-stroke back loading structure

1. The extrusion stroke of the short-stroke extruder is notably shorter than that of conventional extruders, resulting in a reduced frame opening. This design enhancement significantly increases the rigidity of the stress frame, surpassing traditional extruders by 30%.

2. By decreasing the volume of the main side cylinder, hydraulic oil usage is minimized. This reduction enhances both speed and pressure control accuracy while also shortening the time required for pressure adjustments. Consequently, energy consumption is lowered, and the impact of oil during pressure relief is mitigated.

3.Eliminating the gasket circulation system not only reduces reactive operation time but also diminishes the power consumption of the production line. As a result, non-extrusion time is reduced by 15%.

4.Implementation of a translation manipulator powered by a servo motor contributes to a 15% decrease in non-extrusion time.

Application Field

1.Construction Industry

2.Industrial Trade

3.New Energy Industry

4.Photovoltaic Industry

Our hydraulic aluminum extrusion machine is versatile and finds applications across various industries. Aluminum profiles produced by this machine serve diverse purposes such as roofing, walling, constructing doors and windows, framing, creating reticulated shell structures and grid structures, supporting glass curtain walls, building awnings, pedestrian bridges, manufacturing interior and exterior decorative panels, partitions, ceilings, suspended ceilings, railings, and handrails. Additionally, they are utilized for decoration in both industrial and civil buildings. These profiles are also employed as materials and structural components, as well as in the construction of storage containers and formwork, delivering excellent results across a wide spectrum of applications.

Technical Characteristics and Specification

1. The key parts of hydraulic aluminum extrusion machine (container, extrusion pad, shear blade, ingot feeder) have mature structures and low failure rate.

2. The equipment has small impact and vibration, and is not prone to oil leakage.

3. The equipment has fast response, high efficiency and short non-extrusion time.

4. The equipment has high precision and the extrusion speed can be accurately controlled (±0.1mm).

5. The equipment has a high degree of automation and intelligent production, which reduces the requirements for operators and maintenance personnel.

Technical Date

Shipment Pictures

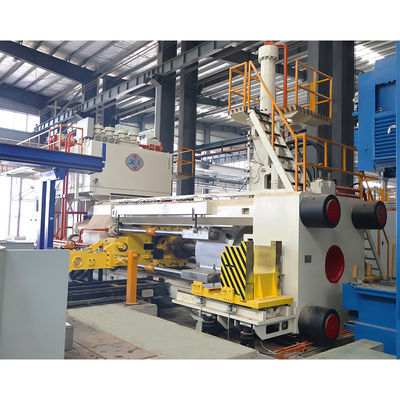

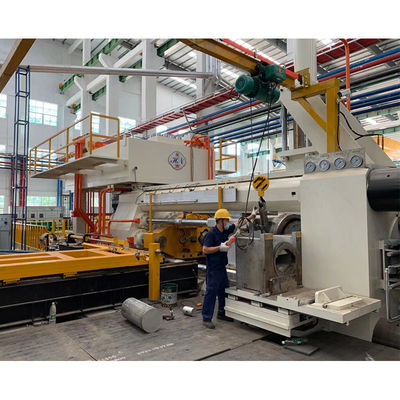

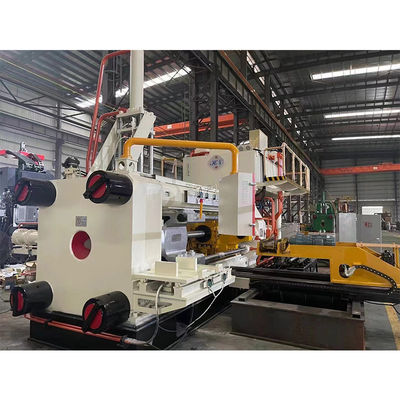

Workshop show

FAQ

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to the feedback of old customers, under normal circumstances, the life of the machine can reach 15 years or more. Many well-know aluminum manufacturers are also our cooperative customers.

Q2: How to choose the right type machine ?

Please tell to us what kind of products you make ?Provide the profile sectional drawing dimensions ,we will according your size to calculate the suitable machine size.

Q3. Will Huanan provide installation service?
When the aluminum extrusion machine arrives at the customer's factory and meets the installation conditions, we will send technicians to the site to install it and train customer employees on how to use the equipment correctly.

Q4:What is the delivery time of Huanan Machines?
For ordinary small-sized machine such as 600-1000MT, 30 days; middle-sized machine such as1250-1800MT, 45-60 days, for big-sized machine such as 2000-3000MT, 180 days.More than 3000MT, half year to one year delivery date. We could also design and make the whole production line for our customer, around 3-10 months.

Q5: What services Huanan can do for you :

Huanan will do professional One-station services

(pre-sales, in-sales, after-sales service system):

Technical consultation and support;

Making a complete production proposal based on customer’s needs;

Design/manufacturing/inspection/uploading/shipping/all original documents services;

Installation/technology training and support/maintenance in a life time.
