Top Quality 2500T Aluminum Profile Extrusion Equipment

Top Quality 2500T Aluminum Profile Extrusion Equipment

Brand Name:	Huanan
Model Number:	HN-2500T
MOQ:	1 Pcs
Price:	$792500-$904200
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Power:

Electric Energy

Size:

Customizable

Use:

Aluminum Extrusion

Motor:

Servo Or Ordinary Motor

Functional:

Automatic Or Semi-automatic

Surface Treatment:

Heat Treatment

Material:

Steel Forging

Color:

Customized

Packaging Details:

Wooden pallet

Highlight:

2500T aluminum extrusion machine

aluminum profile extrusion equipment

industrial aluminum extrusion press

Product Description

Top Quality 2500T Aluminum Profile Extrusion Equipment

The 2500T Aluminum Extrusion Press is a rugged, heavy-duty industrial extrusion unit meticulously engineered for high-efficiency mass fabrication of oversized and intricately structured aluminum profiles. Rated for a nominal 2,500-ton main extrusion force, this heavy-frame equipment features superior rigidity and stable hydraulic output to deliver consistent extrusion performance under long-duration continuous operation.

Outfitted with optimized cylinder layout and precision flow control systems, it realizes smooth forming of thick-wall, extra-wide and irregular elaborate aluminum extrusions with uniform metal streamline, effectively lowering finished product defects and raw material wastage. Widely applicable to construction architectural profiles, automotive structural parts, rail transit accessories and general industrial aluminum components, it satisfies large-batch standardized production requirements for downstream aluminum processing manufacturers.

Product Specifications

Attribute	Value
Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment
Material	Steel Forging
Color	Customized

Technical Specifications

Parameter	Value
Standard billet size - Outer diameter	Φ236mm
Standard billet size - Length	1150mm
Main Piston	Φ1080mm
Machine extrusion force	25Mpa (2515T)
Dimensions of mold base cavity - Diameter	Φ480mm
Dimensions of mold base cavity - Depth	H480mm
Total Power	850KW
Main oil pump (Hilectro brand)	HP13096-G102W-R1P4 *5
Liquid cooling driver	HI200-160KW *5
Main oil pump (Germany Rexroth)	A15V280 31.5MPa variable pumps
Auxiliary pump (Tokyo Keiki)	SQP43-60-38

Advantages of Short-Stroke Back Loading Structure

30% increased rigidity compared to traditional extruders due to shorter extrusion stroke and reduced frame opening
Improved hydraulic efficiency with reduced oil consumption and enhanced speed/pressure control accuracy
15% reduction in non-extrusion time through elimination of gasket circulation system
Additional 15% reduction in non-extrusion time via servo motor-driven translation manipulator

Application Fields

Construction Industry
Industrial Trade
New Energy Industry
Photovoltaic Industry

Aluminum profiles from this press are used in roofs, walls, doors, windows, frames, structural systems, curtain walls, awnings, bridges, decorative panels, partitions, ceilings, railings, and various industrial/residential applications.

Technical Characteristics

Proven design with low failure rates for critical components
Minimal vibration and impact with reduced oil leakage risk
High-speed response with minimized non-extrusion periods
Precision control with ±0.1mm extrusion speed accuracy
Advanced automation reduces operator requirements

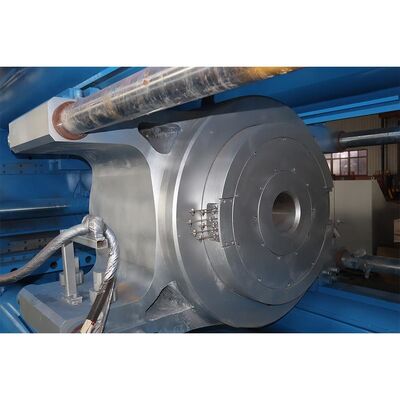

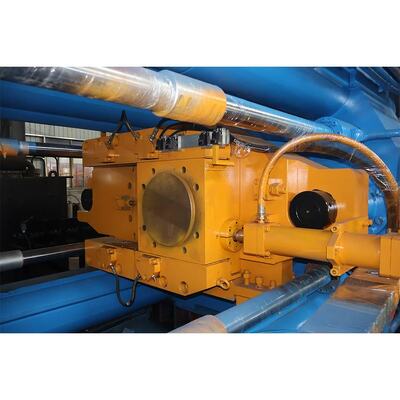

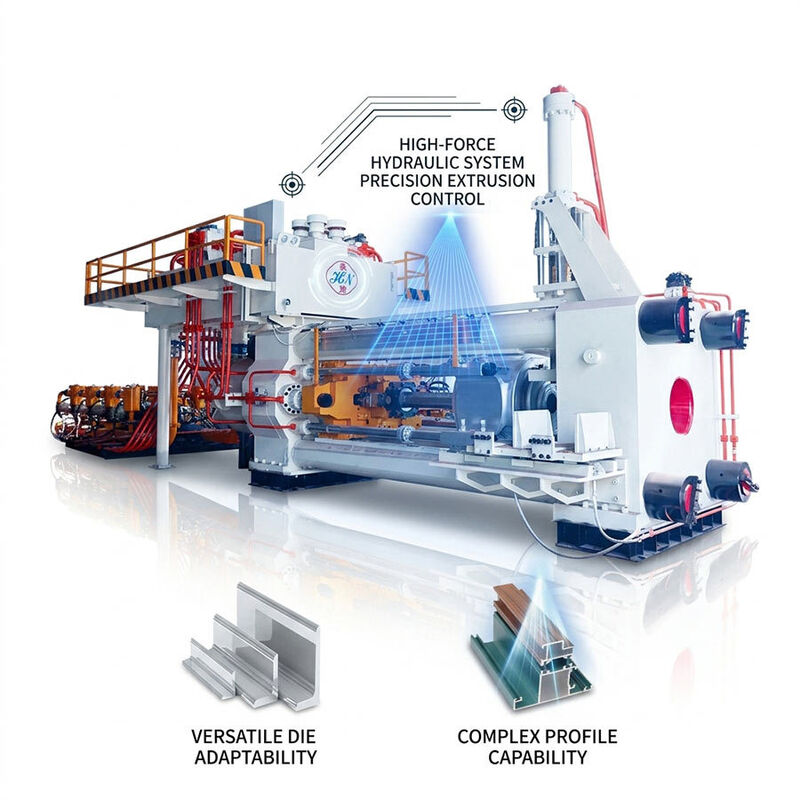

Equipment Images

Frequently Asked Questions

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is among China's top extrusion equipment manufacturers. Customer feedback indicates a typical machine lifespan exceeding 15 years with proper maintenance, with many well-known aluminum manufacturers among our clients.

Q2: How to choose the right type machine?

Please share details about your products and provide profile sectional drawings. We'll calculate and recommend the optimal machine size for your requirements.

Q3: Will Huanan provide installation service?

Our technicians will visit your facility for installation and operator training once the equipment arrives and installation conditions are met.

Q4: What is the delivery time of Huanan Machines?

600-1000MT: 30 days
1250-1800MT: 45-60 days
2000-3000MT: 180 days
3000MT+: 6-12 months

Complete production lines typically require 3-10 months for design and manufacturing.

Q5: What services Huanan can do for you?

We provide comprehensive support including technical consultation, production proposals, complete manufacturing services, shipping documentation, installation, lifetime maintenance, and operator training.
