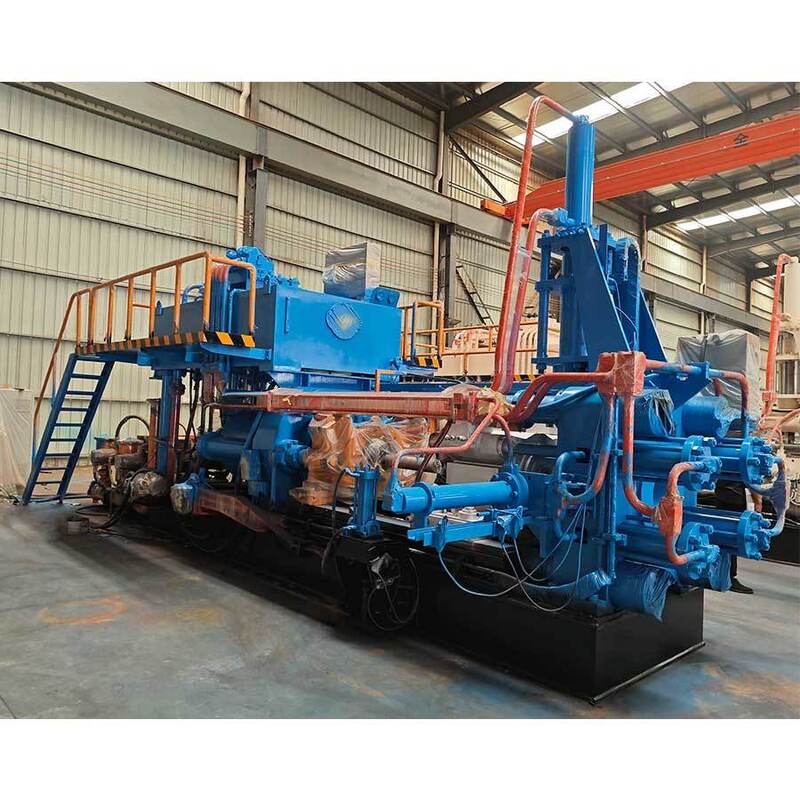

Hot Sale Energy-saving 700T Aluminum Extrusion Line

Hot Sale Energy-saving 700T Aluminum Extrusion Line

Brand Name:	Huanan
Model Number:	HN-700T
MOQ:	1 Pcs
Price:	$89800-$106000
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Power:

Electric Energy

Size:

Customizable

Use:

Aluminum Extrusion

Motor:

Servo Or Ordinary Motor

Functional:

Automatic Or Semi-automatic

Surface Treatment:

Heat Treatment

Material:

Steel Forging

Color:

Customized

Packaging Details:

Wooden pallet

Highlight:

700T aluminum extrusion line

energy-saving aluminum extrusion machine

aluminum extrusion line with warranty

Product Description

Hot Sale Energy-saving 700T Aluminum Extrusion Line

The 700T Customized Aluminum Extrusion Press is a heavy-duty industrial machine specially engineered for forming aluminum alloys into bespoke profiles.

This energy-saving automated production system pushes heated aluminum billets through high-precision dies under extreme hydraulic pressure, producing finished profiles with customized cross-sectional shapes and accurate dimensional tolerances.

With a rated pressing force of 700 tons, the machine is fully capable of processing large-sized, thick-walled and structurally complex aluminum extrusion profiles.

Product Specifications

Attribute	Value
Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment
Material	Steel Forging
Color	Customized

Technical Parameters

Parameter	Value
Standard Billet Size	Outer diameter: Φ100mm Length: 550mm
Extrusion capacity	Machine extrusion force: 22Mpa 729.7T(802UST)
Dimensions of mold base cavity	Diameter: Φ220mm Depth: H250mm
Equipment dimension	Mechanical size: L7950mm×W3200mm×H3550mm Overall weight: 33T Total Power: 103KW
Motor	Main oil pump: (Hilectro brand) HP12981-G102W-R1P4 Liquid cooling driver: Hi300-90KW
Hydraulic pump	Main oil pump: (Germany Rexroth) A15VSO210 variable pumps Auxiliary pump: (Tokyo Keiki) SQP43-60-38

Advantages of Short-Stroke Back Loading Structure

Shorter extrusion stroke than conventional extruders with reduced frame opening for 30% higher rigidity
Reduced main side cylinder volume decreases hydraulic oil usage, improving speed and pressure control accuracy while reducing energy consumption
Eliminates gasket circulation system, reducing reactive operation time and power consumption (non-extrusion time reduced by 15%)
Servo motor-driven translation manipulator further reduces non-extrusion time by 15%

Application Fields

Construction Industry
Industrial Trade
New Energy Industry
Photovoltaic Industry

Aluminum profiles are used in roofs, walls, doors and windows, frames, structural components, glass curtain wall support systems, and various decorative elements in industrial and civil buildings.

Technical Characteristics

Key components (container, extrusion pad, shear blade, ingot feeder) feature mature structures with low failure rates
Minimal impact and vibration with reduced oil leakage risk
Fast response with high efficiency and short non-extrusion time
High precision with extrusion speed control (±0.1mm)
High automation level with intelligent production reduces operator requirements

Frequently Asked Questions

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. Under normal conditions, the machine lifespan reaches 15+ years, with many well-known aluminum manufacturers as our customers.

Q2: How to choose the right type machine?

Provide your product profile sectional drawing dimensions, and we'll calculate the suitable machine size for your needs.

Q3: Will Huanan provide installation service?

We send technicians to install the machine and train your employees on proper operation when installation conditions are met.

Q4: What is the delivery time of Huanan Machines?

600-1000MT: 30 days; 1250-1800MT: 45-60 days; 2000-3000MT: 180 days; 3000MT+: 6-12 months. Complete production lines require 3-10 months.

Q5: What services Huanan can do for you?

We provide comprehensive one-station services including technical consultation, production proposals, design/manufacturing, shipping documentation, installation, training, and lifetime maintenance support.
