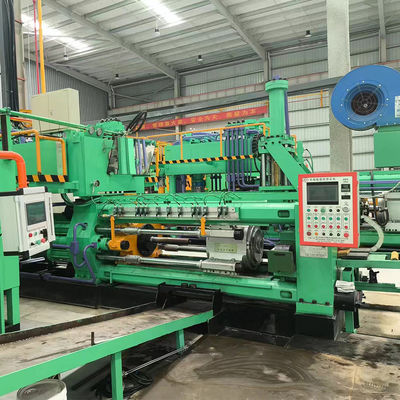

700T Customized Type Aluminum Extrusion Machine Press Extruder

700T Customized Type Aluminum Extrusion Machine Press Extruder

700T Customized Type Aluminum Extrusion Machine Press Extruder

Brand Name: Huanan
Model Number: HN-700T
MOQ: 1 pcs
Price: $89800-$106000
Payment Terms: T/T,L/C
Supply Ability: 5pcs /3 months
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong,China
Highlight:

700T Aluminum Extrusion Machine

,

250mm Aluminum Extrusion Machine

,

forged steel aluminum extruder

Product Description
High Quality 700T Customized Aluminum Extrusion Machine Press Extruder
Material and Specifications of Main Parts
Item Specification & Materials Details
Master cylinder 35# forged steel
Piston Φ620mm alloy chilled cast iron
Auxiliary cylinder Φ140mm 2 pieces
Container cylinder Φ140mm 4 pieces
Front beam 360 mm thick, material: 45# forged steel
Outlet short axis 140mm x long axis 170mm
Slider base thick 250mm 45# steel
Movable beam thick 215mm 45# steel
Tie rods Φ170mm 45# steel quenched and tempered
Insulation seat ZG35
Container outside cover 5CrMnMo forged steel heat treatment
Container liner H13 Forged Steel Heat Treatment
Stem H13 Forged Steel Heat Treatment
Dummy block H13 forged steel heat treatment
Advantages of Short-Stroke Back Loading Structure
  • The extrusion stroke is shorter than conventional extruders, with reduced frame opening for 30% higher rigidity compared to traditional extruders
  • Reduced main side cylinder volume decreases hydraulic oil usage, improving speed and pressure control accuracy while lowering energy consumption
  • Eliminates gasket circulation system, reducing reactive operation time and production line power consumption by 15%
  • Servo motor-driven translation manipulator reduces non-extrusion time by 15%
700T Customized Type Aluminum Extrusion Machine Press Extruder 0
Application Fields
  • Construction Industry: Roofs, walls, doors, windows, frames, structural components
  • Industrial Trade: Structural and decorative elements
  • New Energy Industry: Components for renewable energy systems
  • Photovoltaic Industry: Solar panel support structures
700T Customized Type Aluminum Extrusion Machine Press Extruder 1
Technical Characteristics
  • Key components (container, extrusion pad, shear blade, ingot feeder) feature mature designs with low failure rates
  • Minimal impact and vibration with leak-resistant construction
  • Fast response time with high efficiency and short non-extrusion periods
  • Precision control with ±0.1mm extrusion speed accuracy
  • High automation level with intelligent production capabilities
700MT/770UST Technical Parameters
Standard Billet Size:
Outer diameter: Φ100mm
Length: 550mm
Extrusion capacity:
Machine extrusion force: 22Mpa 729.7T(802UST)
Dimensions of mold base cavity:
Diameter: Φ220mm
Depth: H250mm
Equipment dimension:
Mechanical size: L7950mm×W3200mm×H3550mm
Overall weight: 33T
Total Power: 103KW
Motor:
Main oil pump (Hilectro brand): HP12981-G102W-R1P4
Liquid cooling driver: Hi300-90KW
Hydraulic pump:
Main oil pump (Germany Rexroth): A15VSO210 variable pumps
Auxiliary pump (Tokyo Keiki): SQP43-60-38
700T Customized Type Aluminum Extrusion Machine Press Extruder 2 700T Customized Type Aluminum Extrusion Machine Press Extruder 3
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is among China's top extrusion equipment manufacturers. Customer feedback indicates a typical machine lifespan exceeding 15 years with proper maintenance, with many well-known aluminum manufacturers among our clientele.
Q2: How to choose the right type machine?
Please provide details about your products and profile sectional drawing dimensions. Our engineers will calculate and recommend the optimal machine size for your specific requirements.
Q3: Will Huanan provide installation service?
Yes, upon machine arrival at your facility and when installation conditions are met, we dispatch technicians for installation and operator training.
Q4: What is the delivery time of Huanan Machines?
  • 600-1000MT: 30 days
  • 1250-1800MT: 45-60 days
  • 2000-3000MT: 180 days
  • 3000MT+: 6-12 months
  • Complete production lines: 3-10 months
Q5: What services Huanan can do for you:
Huanan provides comprehensive one-stop services including:
  • Technical consultation and support
  • Custom production proposals
  • Complete manufacturing and documentation services
  • Installation, training, and lifetime maintenance support
