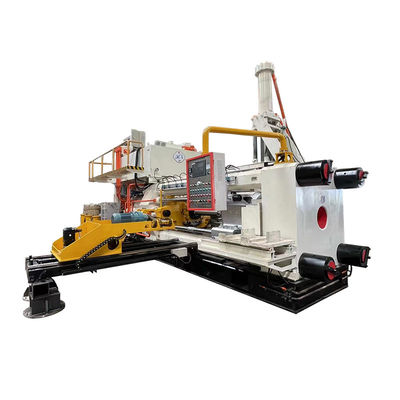

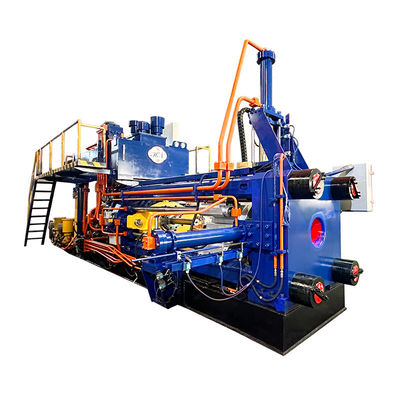

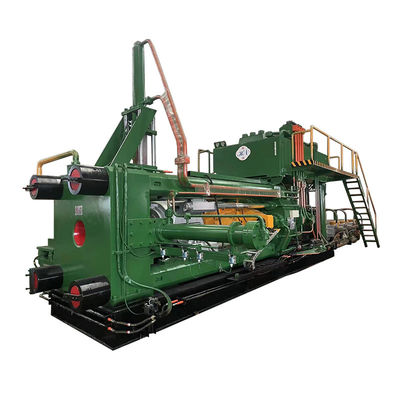

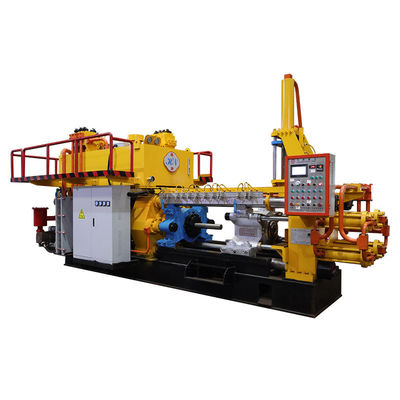

700MT Energy Saving System Hydraulic Aluminum Extrusion Press Extruder

Advantages of short-stroke back loading structure

1. The extrusion stroke of the short-stroke extruder is shorter than that the conventional extruder, and the frame opening is reduced, making the stress frame have higher rigidity.

(30% higher than traditional extruder)

2. The main side cylinder volume is reduced, which reduces the usage of hydraulic oil, thus improving the speed control accuracy and pressure control accuracy. It shortens the time of raising and releasing pressure, reduce energy consumption and reduce the impact of oil during pressure relief.

3.Cancel the gasket circulation system, reduce reactive operation time, and reduce the power consumption of the production line. Non-extrusion time is reduced by 15%.

4.Using a translation manipulator driven by a servo motor, the non-extrusion time is reduced by 15%.

Application Field

1.Construction Industry

2.Industrial Trade

3.New Energy Industry

4.Photovoltaic Industry

Aluminum profiles are used in roofs, walls, doors and windows, frames, reticulated shell structures, grid structures, glass curtain wall support systems, awnings, pedestrian bridges, interior and exterior decorative panels, partitions, ceilings, suspended ceilings, railings and handrails, and decoration in industrial and civil buildings. Materials and structural components, store containers and formwork for construction are widely used with good results.

Technical Characteristics and Specification

1. The key parts of hydraulic aluminum extrusion machine (container, extrusion pad, shear blade, ingot feeder) have mature structures and low failure rate.

2. The equipment has small impact and vibration, and is not prone to oil leakage.

3. The equipment has fast response, high efficiency and short non-extrusion time.

4. The equipment has high precision and the extrusion speed can be accurately controlled (±0.1mm).

5. The equipment has a high degree of automation and intelligent production, which reduces the requirements for operators and maintenance personnel.

Technical Date

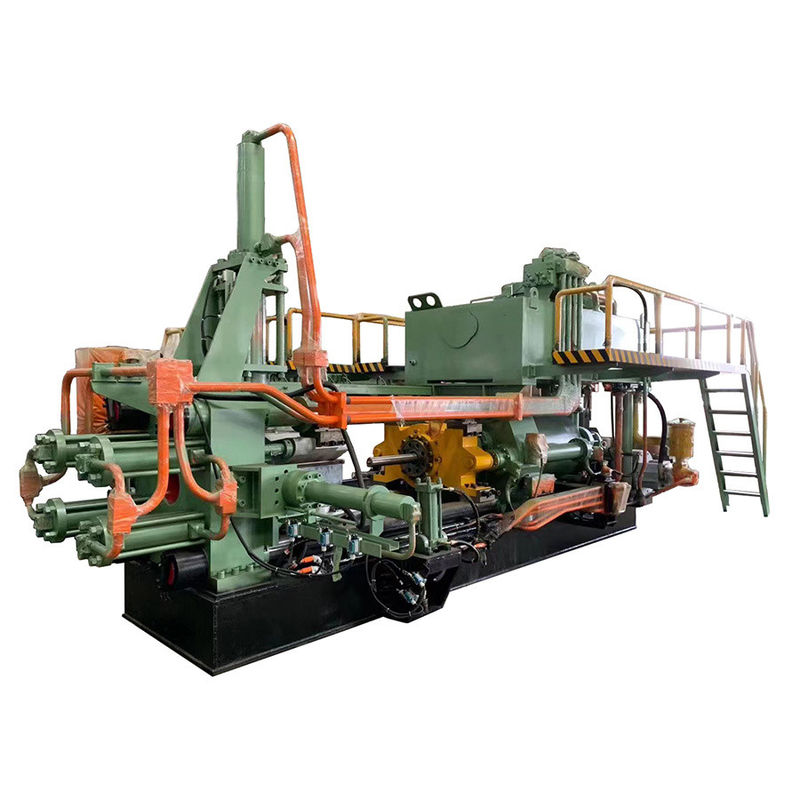

Shipment Pictures

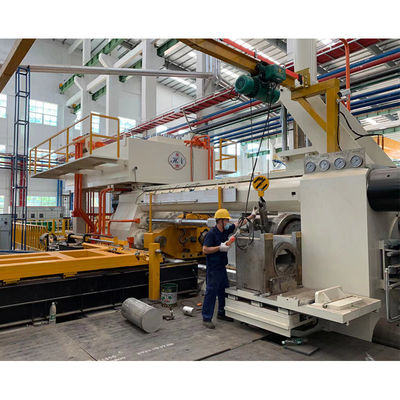

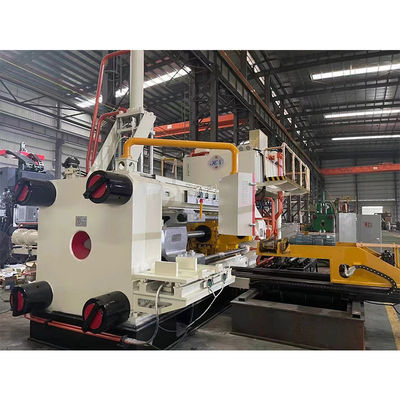

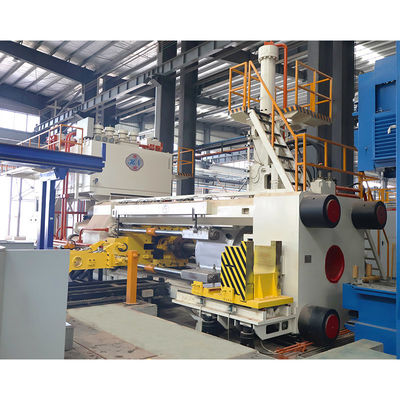

Workshop show

FAQ

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to the feedback of old customers, under normal circumstances, the life of the machine can reach 15 years or more. Many well-know aluminum manufacturers are also our cooperative customers.

Q2: How to choose the right type machine ?

Please tell to us what kind of products you make ?Provide the profile sectional drawing dimensions ,we will according your size to calculate the suitable machine size.

Q3. Will Huanan provide installation service?
When the aluminum extrusion machine arrives at the customer's factory and meets the installation conditions, we will send technicians to the site to install it and train customer employees on how to use the equipment correctly.

Q4:What is the delivery time of Huanan Machines?
For ordinary small-sized machine such as 600-1000MT, 30 days; middle-sized machine such as1250-1800MT, 45-60 days, for big-sized machine such as 2000-3000MT, 180 days.More than 3000MT, half year to one year delivery date. We could also design and make the whole production line for our customer, around 3-10 months.

Q5: What services Huanan can do for you :

Huanan will do professional One-station services (pre-sales, in-sales, after-sales service system):

Technical consultation and support;

Making a complete production proposal based on customer’s needs;

Design/manufacturing/inspection/uploading/shipping/all original documents services;

Installation/technology training and support/maintenance in a life time.
