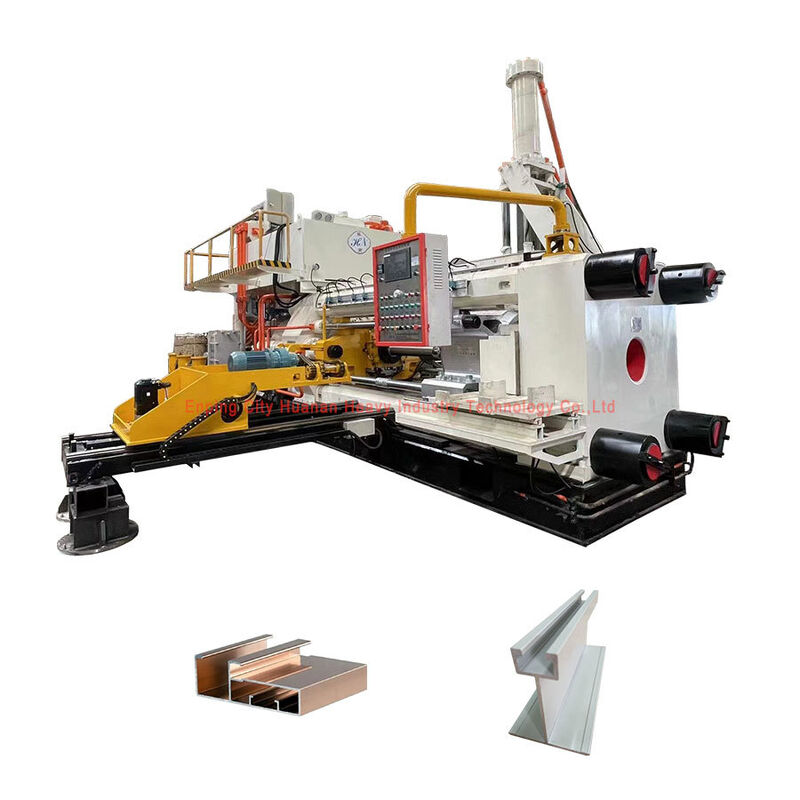

2200T Hot Sale High Quality Aluminum Extrusion Machine Press Line

2200T Hot Sale High Quality Aluminum Extrusion Machine Press Line

Brand Name:	Huanan
MOQ:	1 Pcs
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Size:

Customizable

Functional:

Automatic Or Semi-automatic

Color:

Customized

Material:

Steel Forging

Surface Treatment:

Heat Treatment

Use:

Aluminum Extrusion

Power:

Electric Energy

Motor:

Servo Or Ordinary Motor

Packaging Details:

Wooden pallet

Highlight:

2200T aluminum extrusion machine

aluminum extrusion press line

high performance extrusion machine

Product Description

2200T High-Performance Aluminum Extrusion Machine Press Line

The 2200T aluminum extruder features a variable frequency control system for flexible operation control and efficient production management. Built with a heavy-duty machine frame and hydraulic extrusion system, it maintains steady extrusion force and reliable forming stability during continuous production cycles.

This aluminum extrusion press is engineered for producing oversized aluminum profiles, complex cross-section profiles, structural parts, and other extruded products requiring high forming force and precise process control. Customization options are available to match specific billet dimensions, profile specifications, and automation requirements.

Product Specifications

Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment
Material	Steel Forging
Color	Customized

Technical Parameters

Standard Billet Size (Outer diameter)	Φ203mm
Standard Billet Size (Length)	400-1100mm
Main Piston	Φ920mm
Machine extrusion force	25Mpa (2208T)
Dimensions of mold base cavity (Diameter)	Φ480mm
Dimensions of mold base cavity (Depth)	H480mm
Mechanical size	L10500mm x W7800mm x H5200mm
Overall weight	185T
Total Power	524KW
Main oil pump (Hilectro brand)	HP12981-G102W-R1P4 *4
Liquid cooling driver	Hi300-132KW *4
Main oil pump (Germany Rexroth)	A15VSO-210 31.5MPa variable pumps
Auxiliary pump (Tokyo Keiki)	SQP43-60-38+A2F28

Advantages of Short-Stroke Back Loading Structure

30% increased rigidity compared to traditional extruders due to reduced frame opening
Improved hydraulic efficiency with reduced oil consumption and enhanced control accuracy
15% reduction in non-extrusion time through elimination of gasket circulation system
Additional 15% time savings from servo motor-driven translation manipulator

Application Fields

This aluminum extrusion machine serves multiple industries including construction, industrial trade, new energy, and photovoltaic sectors. Aluminum profiles produced are used in structural components, decorative elements, and building systems including roofs, walls, windows, curtain walls, partitions, and industrial structures.

Technical Characteristics

Proven Design
Low failure rates for critical components

Minimal Vibration
Reduced impact and oil leakage risks

High-Speed Response
Efficient operation with reduced downtime

Precision Control
±0.1mm extrusion speed accuracy

Advanced Automation
Reduced operator requirements

Logistics

Workshop Environment

Frequently Asked Questions

How is the quality of Huanan Brand machine and the service life?

Huanan Brand is recognized as top-tier extrusion equipment in China. With proper maintenance, the machine lifespan typically exceeds 15 years, with many well-known aluminum manufacturers among our satisfied customers.

How to choose the right type machine?

Provide your profile sectional drawing dimensions and intended products. Our engineers will calculate and recommend the optimal machine configuration for your requirements.

Will Huanan provide installation service?

Our technicians will conduct on-site installation and operator training once the equipment arrives at your facility and installation conditions are met.

What is the delivery time of Huanan Machines?

Delivery times vary by machine size: 600-1000MT (30 days), 1250-1800MT (45-60 days), 2000-3000MT (180 days), 3000MT+ (6-12 months). Complete production lines require 3-10 months.

What services Huanan can do for you?

We provide comprehensive support including technical consultation, production proposals, design/manufacturing, documentation, shipping, installation, training, and lifetime maintenance.
