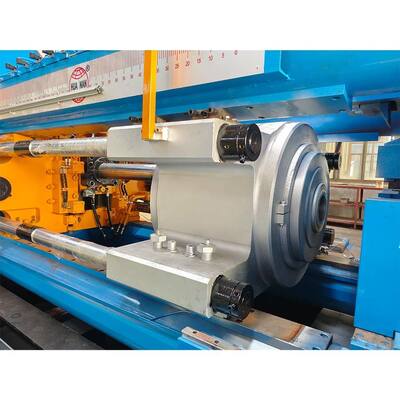

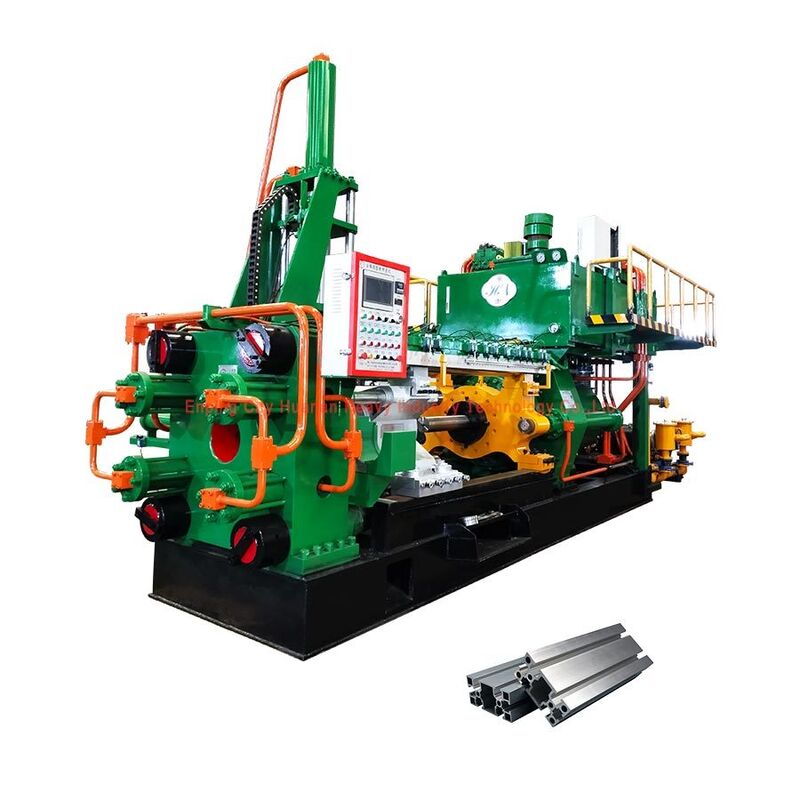

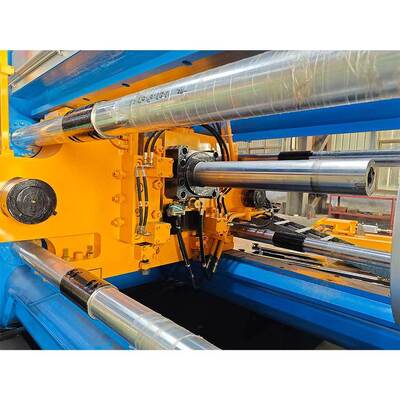

1100T Aluminium Extrusion Press Machine for Aluminum Profile Production

1100T Aluminium Extrusion Press Machine for Aluminum Profile Production

Brand Name:	Huanan
Model Number:	HN-1100T
MOQ:	1 Pcs
Price:	$159400-$182000
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Size:

Customizable

Uses:

Extrusion

Power:

Electric Energy

Color:

Customized

Use:

Aluminum Extrusion

Craft:

Forging

Motor:

Servo Or Ordinary Motor

Functional:

Automatic Or Semi-automatic

Surface Treatment:

Heat Treatment

Material:

Steel Forging

Packaging Details:

Wooden pallet

Highlight:

1100T aluminium extrusion press machine

aluminum profile production machine

aluminum extrusion press with warranty

Product Description

1100T Aluminum Extrusion Press Machine

The 1100T Aluminum Extrusion Press is engineered for high-volume production of aluminum profiles used in construction, doors and windows, industrial equipment, solar photovoltaic systems, and various other applications.

Product Overview

This hydraulic extrusion system features constant force and stepless speed control, delivering stable forming performance for diverse production requirements. The robust structure and optimized hydraulic system support efficient operation, reduced non-extrusion time, and simplified maintenance.

Product Specifications

Material	Steel Forging
Application	Aluminum Extrusion
Color	Customized
Manufacturing Process	Forging
Power Source	Electric Energy
Size	Customizable
Motor Type	Servo or Ordinary Motor
Operation Mode	Automatic or Semi-Automatic
Surface Treatment	Heat Treatment

Technical Specifications

Standard Billet Outer Diameter	Φ127mm
Standard Billet Length	400-680/750mm
Machine Extrusion Force	21Mpa 1000T(1100UST)
Mold Base Cavity Diameter	Φ250mm
Mold Base Cavity Depth	H260mm
Mechanical Size	L9500mm × W3200mm × H3900mm
Overall Weight	55T
Total Power	182.5KW
Main Oil Pump (Hilectro)	HP12981-G102W-R1P4
Liquid Cooling Driver	Hi300-90KW
Main Oil Pump (Germany Rexroth)	A15VSO210 Variable Pumps
Auxiliary Pump (Tokyo Keiki)	SQP43-60-38

Advantages of Short-Stroke Back Loading Structure

Shorter extrusion stroke reduces frame opening, increasing stress frame rigidity by 30% compared to traditional extruders
Decreased main side cylinder volume minimizes hydraulic oil usage, enhancing speed and pressure control accuracy
Elimination of gasket circulation system reduces reactive operation time and power consumption
Translation manipulator powered by servo motor contributes to 15% reduction in non-extrusion time

Application Fields

Our hydraulic aluminum extrusion machine serves diverse industries including construction, industrial trade, new energy, and photovoltaic industries. Aluminum profiles produced by this machine are used for roofing, walling, doors and windows, framing, reticulated shell structures, glass curtain walls, awnings, pedestrian bridges, interior/exterior decorative panels, partitions, ceilings, railings, and handrails. They also serve as structural components in storage containers and formwork.

Technical Characteristics

Key components feature mature structures with low failure rates
Minimal impact and vibration with reduced oil leakage potential
Fast response time with high efficiency and short non-extrusion periods
High precision with extrusion speed control accuracy of ±0.1mm
Advanced automation and intelligent production reduces operator requirements

Shipping

Frequently Asked Questions

How is the quality of Huanan Brand machine and the service life?

Huanan Brand is among China's top extrusion equipment manufacturers. Customer feedback indicates a typical machine lifespan exceeding 15 years with proper maintenance. Many well-known aluminum manufacturers are our satisfied customers.

How to choose the right type machine?

Please provide details about your products and profile sectional drawing dimensions. Our engineers will calculate the optimal machine size for your requirements.

Will Huanan provide installation service?

When the machine arrives at your facility and installation conditions are met, we dispatch technicians for installation and operator training.

What is the delivery time of Huanan Machines?

600-1000MT machines: 30 days
1250-1800MT machines: 45-60 days
2000-3000MT machines: 180 days
3000MT+ machines: 6-12 months

Complete production lines require 3-10 months depending on complexity.

What services does Huanan provide?

Huanan offers comprehensive one-station services including technical consultation and support, custom production proposals, design, manufacturing, inspection, shipping with full documentation, installation, training, and lifetime maintenance support.
