Hot Sale 1800T Aluminum Extrusion Press for Making Aluminum Rods

Hot Sale 1800T Aluminum Extrusion Press for Making Aluminum Rods

Brand Name:	Huanan
Model Number:	HN-1800T
MOQ:	1 Pcs
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Power:

Electric Energy

Size:

Customizable

Use:

Aluminum Extrusion

Motor:

Servo Or Ordinary Motor

Functional:

Automatic Or Semi-automatic

Surface Treatment:

Heat Treatment

Material:

Steel Forging

Color:

Customized

Packaging Details:

Wooden pallet

Highlight:

1800T aluminum extrusion press

aluminum extrusion machine for rods

aluminum rod extrusion press

Product Description

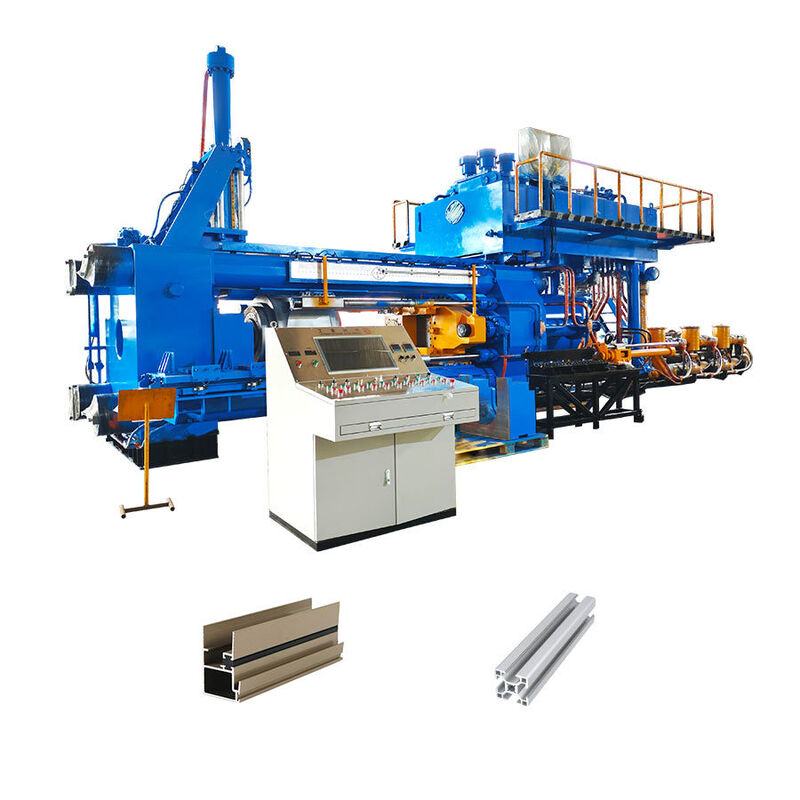

1800T Aluminum Extrusion Press for Aluminum Rod Production

The Huanan 1800T Servo Energy-Saving Aluminum Extrusion Machine is a heavy-duty hydraulic press engineered for high-volume production of large and precision aluminum profiles. With an extrusion force of 1800 metric tons, it delivers robust forming capacity and stable performance for demanding industrial extrusion applications.

Designed for continuous industrial manufacturing, this high-performance aluminum extruder is ideal for producing structural, architectural, industrial, and other large-section aluminum profiles. The machine can also be configured for applications requiring high-force metal extrusion, including brass extrusion processes.

Product Specifications

Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment
Material	Steel Forging
Color	Customized

Technical Parameters

Standard Billet Size - Outer diameter	Φ178mm
Standard Billet Size - Length	400-1000mm
Machine extrusion force	25Mpa 1851T(2036UST)
Dimensions of mold base cavity - Diameter	Φ400mm
Dimensions of mold base cavity - Depth	H420mm
Equipment dimension - Mechanical size	L15500mm×W7327mm×H4445mm
Equipment dimension - Overall weight	132T
Equipment dimension - Total Power	420KW
Motor - Main oil pump (Hilectro brand)	HP12981-G102W-R1P4*4
Motor - Liquid cooling driver	Hi200-110KW*4
Hydraulic pump - Main oil pump (Germany Rexroth)	A15VSO210 31.5MPa variable pumps
Hydraulic pump - Auxiliary pump (Tokyo Keiki)	SQP43-60-38+A2F28

Advanced Energy-Saving Technology

The advanced servo motor energy-saving technology significantly reduces energy consumption compared to traditional extrusion machines while enhancing operational stability and precision. The user-friendly interface and optimized control system ensure efficient operation with minimal training requirements.

Short-Stroke Back Loading Structure Advantages

Shorter extrusion stroke than conventional extruders, reducing frame opening and increasing stress frame rigidity by 30%
Reduced main side cylinder volume decreases hydraulic oil usage, improving speed and pressure control accuracy
Elimination of gasket circulation system reduces reactive operation time and power consumption by 15%
Servo motor-driven translation manipulator further reduces non-extrusion time by 15%

Application Fields

Our hydraulic aluminum extrusion machine serves multiple industries including construction, industrial trade, new energy, and photovoltaic sectors. The aluminum profiles produced have diverse applications:

Roofs, walls, doors, and windows - durable and lightweight structural components
Frames and reticulated shell structures - strong support for complex designs
Grid structures and glass curtain wall support systems - robust building facades
Awnings and pedestrian bridges - functional outdoor solutions
Interior/exterior decorative panels, partitions, and ceilings - aesthetic enhancements
Railings and handrails - safety with modern design
Store containers and construction formwork - versatile assembly solutions

Technical Characteristics

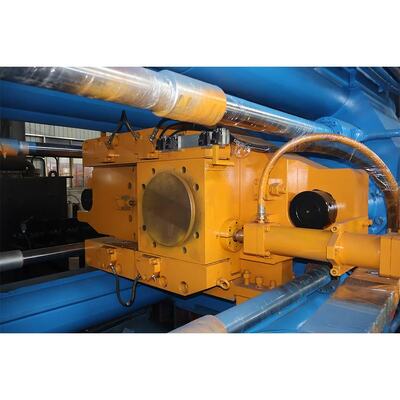

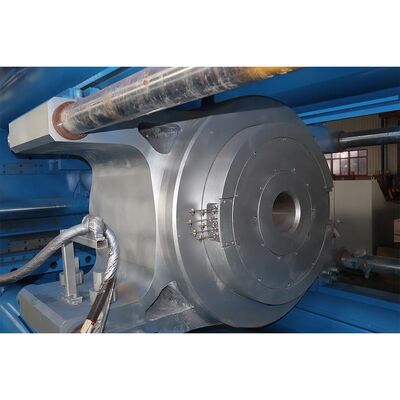

Key components (container, extrusion pad, shear blade, ingot feeder) feature mature designs with low failure rates
Minimal impact and vibration reduces oil leakage likelihood
Quick responsiveness and high efficiency with reduced non-extrusion time
High precision with ±0.1mm extrusion speed control accuracy
Highly automated operation supports intelligent production with reduced operator skill requirements

Equipment Documentation

Shipping

Frequently Asked Questions

How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to customer feedback, the machine's lifespan typically exceeds 15 years under normal conditions. Many well-known aluminum manufacturers are our satisfied customers.

How to choose the right type machine?

Please provide details about your products and profile sectional drawing dimensions. We will calculate and recommend the most suitable machine size for your requirements.

Will Huanan provide installation service?

When the machine arrives at your facility and installation conditions are met, we will dispatch technicians for on-site installation and operator training.

What is the delivery time of Huanan Machines?

Delivery times vary: 30 days for 600-1000MT machines, 45-60 days for 1250-1800MT, 180 days for 2000-3000MT, and 6-12 months for machines over 3000MT. Complete production lines require 3-10 months.

What services Huanan can do for you?

Huanan provides comprehensive support including technical consultation, customized production proposals, end-to-end services from design to shipping, and lifetime support with installation, training, and maintenance.
