High Quality 2200MT Hydraulic Aluminium Extrusion Machine For Aluminum Profile

High Quality 2200MT Hydraulic Aluminium Extrusion Machine For Aluminum Profile

Brand Name:	Huanan
MOQ:	1 Pcs
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Functional:

Automatic Or Semi-automatic

Use:

Aluminum Extrusion

Surface Treatment:

Heat Treatment

Power:

Electric Energy

Color:

Customized

Size:

Customizable

Material:

Steel Forging

Motor:

Servo Or Ordinary Motor

Packaging Details:

Wooden pallet

Highlight:

2200MT hydraulic aluminum extrusion machine

aluminum profile extrusion machine

hydraulic aluminum extrusion press

Product Description

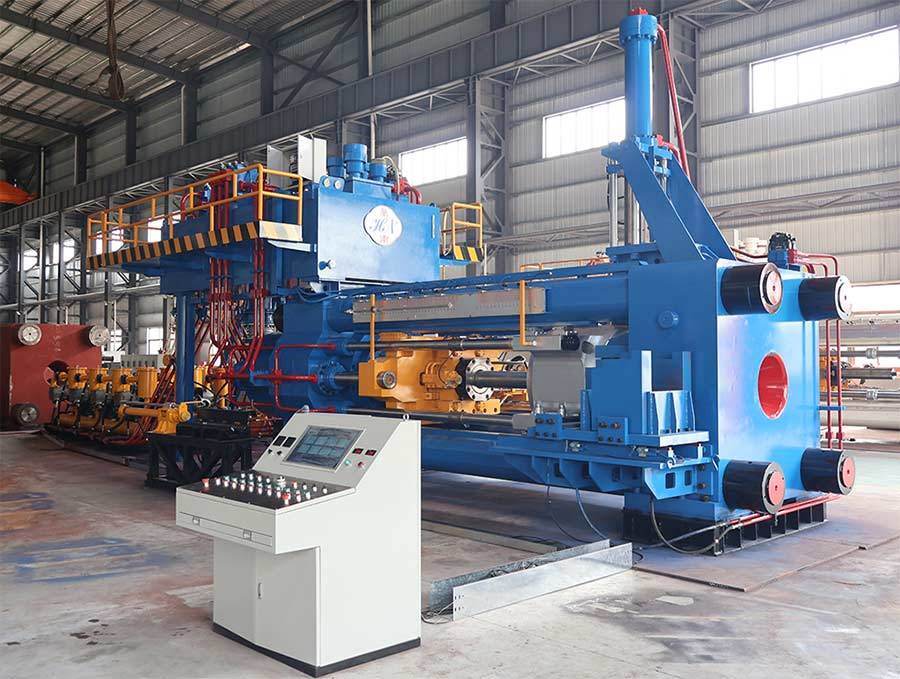

High Quality 2200MT Hydraulic Aluminum Extrusion Machine

Our 2200MT aluminum extrusion press serves as a cost-effective, high-performance core production equipment for modern aluminum processing factories. Custom-built for mass manufacturing of extra-large, complex, ultra-precise aluminum extrusion profiles, this heavy-duty extrusion machine significantly reduces capital expenditure and operational costs compared to higher-tonnage alternatives.

Featuring heavy-load sturdy construction, long-cycle stable continuous operation, and energy-efficient eco-friendly design, this industrial aluminum extruder enables manufacturers to maintain consistent high-volume production of premium aluminum extrusions while substantially lowering overall production costs.

Product Specifications

Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment
Material	Steel Forging
Color	Customized

Technical Parameters

Standard Billet Size (Outer diameter)	Φ203mm
Standard Billet Size (Length)	400-1100mm
Main Piston	Φ920mm
Machine extrusion force	25Mpa (2208T)
Dimensions of mold base cavity (Diameter)	Φ480mm
Dimensions of mold base cavity (Depth)	H480mm
Mechanical size	L10500mm x W7800mm x H5200mm
Overall weight	185T
Total Power	524KW
Main oil pump (Hilectro brand)	HP12981-G102W-R1P4 *4
Liquid cooling driver	Hi300-132KW *4
Main oil pump (Germany Rexroth)	A15VSO-210 31.5MPa variable pumps
Auxiliary pump (Tokyo Keiki)	SQP43-60-38+A2F28

Advantages of Short-Stroke Back Loading Structure

30% increased rigidity compared to traditional extruders due to reduced frame opening
Improved hydraulic efficiency with reduced oil consumption and enhanced control accuracy
15% reduction in non-extrusion time through elimination of gasket circulation system
Additional 15% time savings from servo motor-driven translation manipulator

Application Fields

This aluminum extrusion machine serves multiple industries including:

Construction Industry
Industrial Trade
New Energy Industry
Photovoltaic Industry

Aluminum profiles produced are used in structural components, decorative elements, and building systems including roofs, walls, windows, curtain walls, partitions, and industrial structures.

Technical Characteristics

Proven design with low failure rates for critical components
Minimal vibration and impact, reducing oil leakage risks
High-speed response with efficient operation and reduced downtime
Precision control with ±0.1mm extrusion speed accuracy
Advanced automation reduces operator requirements

Logistics & Workshop Environment

Frequently Asked Questions

How is the quality of Huanan Brand machine and the service life?

Huanan Brand is recognized as top-tier extrusion equipment in China. With proper maintenance, the machine lifespan typically exceeds 15 years, with many well-known aluminum manufacturers among our satisfied customers.

How to choose the right type machine?

Provide your profile sectional drawing dimensions and intended products. Our engineers will calculate and recommend the optimal machine configuration for your requirements.

Will Huanan provide installation service?

Our technicians will conduct on-site installation and operator training once the equipment arrives at your facility and installation conditions are met.

What is the delivery time of Huanan Machines?

Delivery times vary by machine size: 600-1000MT (30 days), 1250-1800MT (45-60 days), 2000-3000MT (180 days), 3000MT+ (6-12 months). Complete production lines require 3-10 months.

What services Huanan can do for you?

We provide comprehensive support including technical consultation, production proposals, design/manufacturing, documentation, shipping, installation, training, and lifetime maintenance.
