High Efficiency Automated 3000T Heavy-duty Silver Extrusion Machine

Brand Name:	Huanan
Model Number:	HN-Ag3000T
MOQ:	1 Pcs
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Power:

Electric Energy

Size:

Customizable

Use:

Silver Extrusion

Motor:

Servo Or Ordinary Motor

Functional:

Automatic Or Semi-automatic

Surface Treatment:

Heat Treatment

Material:

Steel Forging

Color:

Customized

Packaging Details:

Wooden pallet

Highlight:

heavy-duty silver extrusion machine

automated silver extrusion machine

3000T high efficiency extrusion machine

Product Description

High Efficiency Automated 3000T Heavy-duty Silver Extrusion Machine

The 3000T Silver Extrusion Press is a high-performance industrial extrusion machine specifically engineered for the production of large, complex, and high-precision silver profiles. Equipped with a powerful 3000-ton extrusion force, this advanced Silver Extrusion Machine delivers exceptional forming capability, dimensional accuracy, and production stability, making it ideal for manufacturers seeking reliable and efficient silver profile production.

The 3000T Silver Extrusion Press is widely used in applications such as electrical conductors, precision electronic components, aerospace systems, transportation equipment, industrial machinery, and specialized construction projects. Its high extrusion efficiency and precise control help manufacturers reduce material waste, improve product quality, and increase overall productivity.

Key advantages of this Industrial Silver Extrusion Equipment include stable operation, energy-efficient performance, accurate temperature and pressure control, and long service life. The machine can also be integrated with auxiliary equipment such as billet heating furnaces, pullers, run-out tables, cooling systems, and automated handling devices to create a complete and highly efficient silver extrusion production line.

Product Specifications

Attribute	Value
Power	Electric energy
Size	Customizable
Use	Silver Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment
Material	Steel Forging
Color	Customized

Technical Parameters

Parameter	Value
Billet diameter	Φ254(0/-2)mm
Billet length range	600～1200 mm
Rated extrusion force	Actual output 25 MPa(3040T) Maximum 28Mpa (3404T)
Total installed power	850KW

Key Components

Component	Specification
Liquid cooling driver	HI200-160KW *5
Main oil pump (Germany Rexroth)	A15V280 31.5MPa variable pumps
Auxiliary pump (Tokyo Keiki)	SQP43-60-38

Advantages of Short-Stroke Back Loading Structure

The short-stroke extruder features a shorter extrusion stroke compared to conventional Silver extruders, enhancing frame rigidity by 30%
Reduced main side cylinder volume decreases hydraulic oil consumption and improves speed/pressure control accuracy
Eliminates gasket circulation system, reducing reactive operations and power consumption by 15%
Servo motor-driven translation manipulator further reduces non-extrusion time by 15%

Application Fields

Construction Industry
Industrial Trade
New Energy Industry
Photovoltaic Industry

Silver profiles are extensively utilized in various applications including structural components, decorative elements, and support systems for both industrial and residential buildings.

Technical Characteristics

Critical components feature well-established designs with low failure rates
Minimal impact and vibration significantly reduce oil leakage likelihood
Rapid response time with high efficiency and minimized non-extrusion periods
High precision with extrusion speed control within ±0.1mm
High automation level reduces operator demands

Equipment Loading

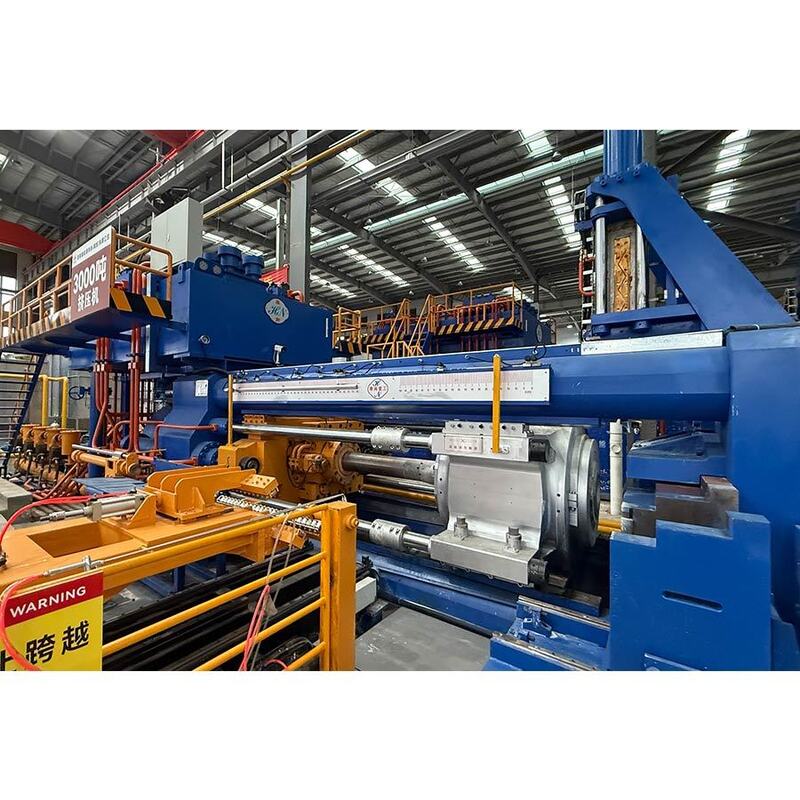

Equipment Gallery

Frequently Asked Questions

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. Under normal conditions, the machine lifespan exceeds 15 years, with many well-known aluminum And Silver manufacturers as our customers.

Q2: How to choose the right type machine?

Provide your profile sectional drawing dimensions, and we'll calculate the suitable machine size for your production needs.

Q3: Will Huanan provide installation service?

We send technicians to install equipment and train your employees when installation conditions are met at your facility.

Q4: What is the delivery time of Huanan Machines?

Delivery times range from 30 days for small machines (600-1000MT) to 180 days for large machines (2000-3000MT). Complete production lines require 3-10 months.

Q5: What services Huanan can do for you?

We provide comprehensive services including technical consultation, production proposals, design/manufacturing, shipping documentation, installation, training, and lifetime maintenance support.
