700T Advanced Aluminium Extrusion Press for Aluminium Profile Extrusion

700T Advanced Aluminium Extrusion Press for Aluminium Profile Extrusion

Brand Name:	Huanan
Model Number:	HN-700T
MOQ:	1 Pcs
Price:	$89800-$106000
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Power:

Electric Energy

Size:

Customizable

Use:

Aluminum Extrusion

Motor:

Servo Or Ordinary Motor

Functional:

Automatic Or Semi-automatic

Surface Treatment:

Heat Treatment

Material:

Steel Forging

Color:

Customized

Packaging Details:

Wooden pallet

Highlight:

700T aluminium extrusion press

aluminium profile extrusion machine

advanced aluminium extrusion press

Product Description

700T Advanced Aluminium Extrusion Press

A robust heavy-duty industrial processing equipment engineered to fabricate diversified aluminium alloy finished profiles through precision extrusion forming.

Product Specifications

Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment
Material	Steel Forging
Color	Customized

Technical Parameters

Parameter	Value
Standard Billet Size (Outer diameter)	Φ100mm
Standard Billet Size (Length)	550mm
Machine extrusion force	22Mpa 729.7T(802UST)
Dimensions of mold base cavity (Diameter)	Φ220mm
Dimensions of mold base cavity (Depth)	H250mm
Mechanical size	L7950mmW3200mmH3550mm
Overall weight	33T
Total Power	103KW
Main oil pump (Hilectro brand)	HP12981-G102W-R1P4
Liquid cooling driver	Hi300-90KW
Main oil pump (Germany Rexroth)	A15VSO210 variable pumps
Auxiliary pump (Tokyo Keiki)	SQP43-60-38

Advantages of Short-Stroke Back Loading Structure

Shorter extrusion stroke with reduced frame opening for 30% higher rigidity than traditional extruders
Reduced main side cylinder volume decreases hydraulic oil usage, improving speed and pressure control accuracy while reducing energy consumption
Eliminates gasket circulation system, reducing reactive operation time and production line power consumption (15% reduction in non-extrusion time)
Servo motor-driven translation manipulator further reduces non-extrusion time by 15%

Application Fields

Construction Industry
Industrial Trade
New Energy Industry
Photovoltaic Industry

Aluminum profiles are used in various architectural applications including roofs, walls, doors and windows, frames, structural components, decorative panels, partitions, ceilings, railings, and more in both industrial and civil buildings.

Technical Characteristics

Key components (container, extrusion pad, shear blade, ingot feeder) feature mature structures with low failure rates
Minimal impact and vibration with reduced oil leakage potential
Fast response time with high efficiency and short non-extrusion periods
High precision with extrusion speed control accuracy of ±0.1mm
High automation level with intelligent production capabilities, reducing operator requirements

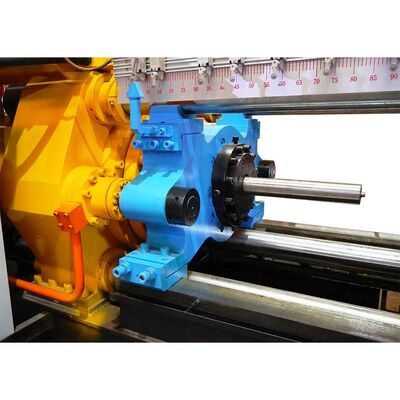

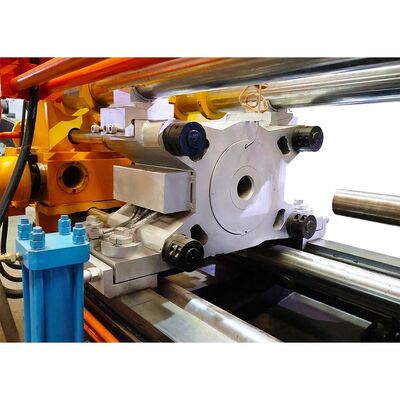

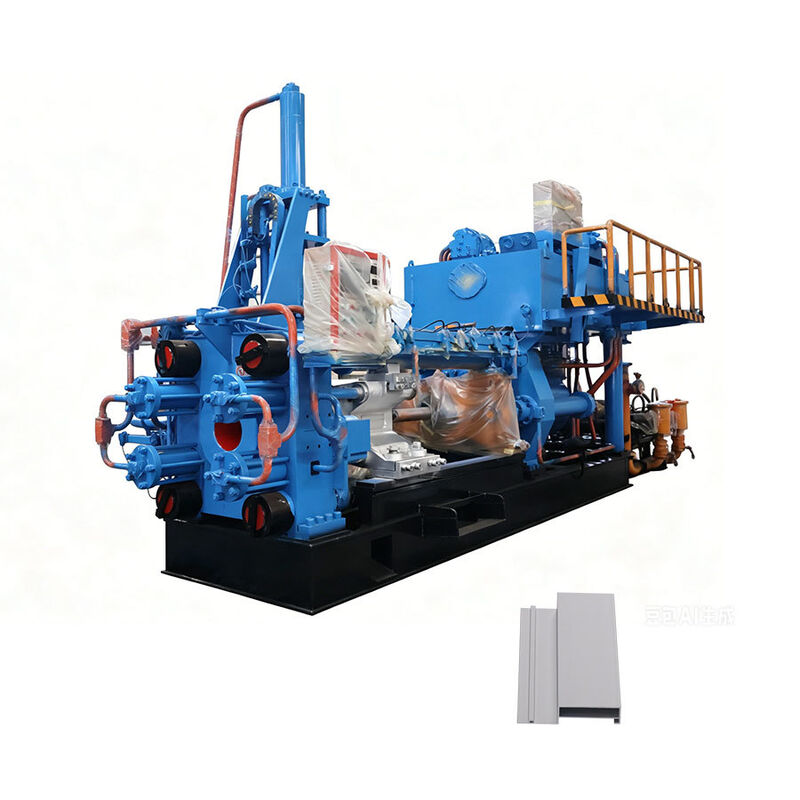

Product Images

Frequently Asked Questions

How is the quality of Huanan Brand machine and the service life?

Huanan Brand is among the top extrusion equipment manufacturers in China. Customer feedback indicates a machine lifespan of 15+ years under normal conditions, with many well-known aluminum manufacturers as satisfied customers.

How to choose the right type machine?

Please provide details about your products and profile sectional drawing dimensions. We will calculate and recommend the most suitable machine size for your requirements.

Will Huanan provide installation service?

When the machine arrives at your facility and installation conditions are met, we will dispatch technicians for installation and provide comprehensive operator training.

What is the delivery time of Huanan Machines?

600-1000MT: 30 days
1250-1800MT: 45-60 days
2000-3000MT: 180 days
3000MT+: 6-12 months
Complete production lines require 3-10 months depending on complexity.

What services Huanan can do for you:

Huanan provides comprehensive one-stop services including technical consultation, customized production proposals, complete manufacturing process support, shipping documentation, installation, lifetime maintenance, and operator training.
