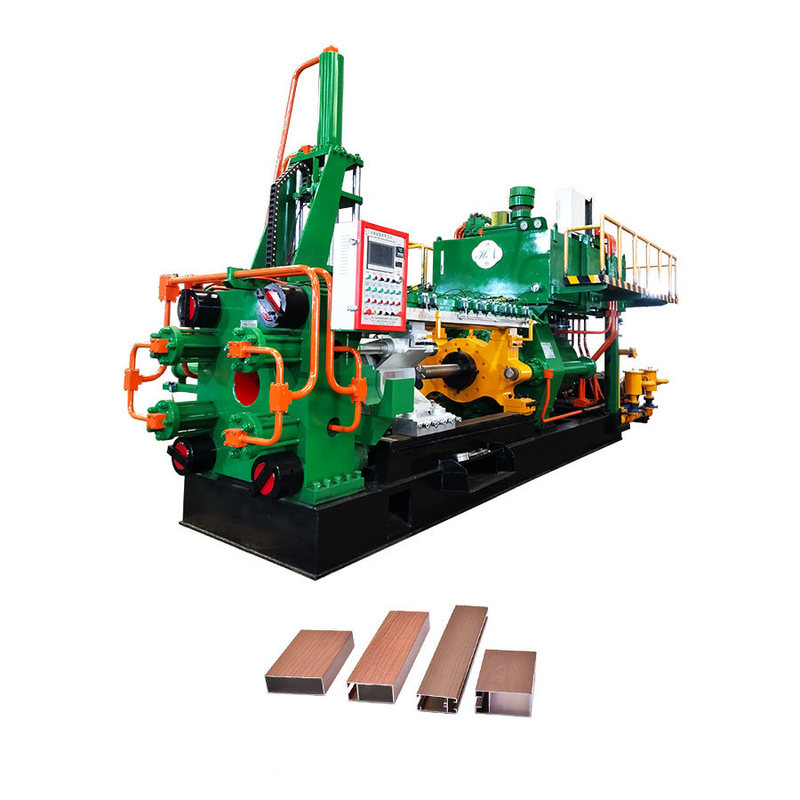

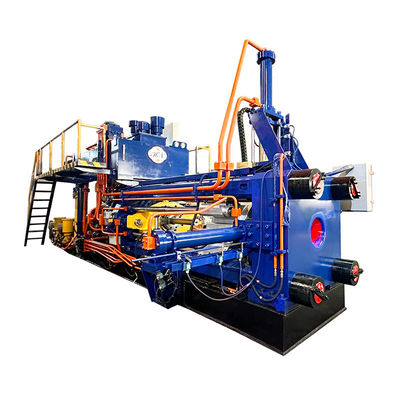

1100T Aluminum Extrusion Press Machine Aluminium Extrusion Press Manufacturers Extruder Machine Aluminum

1100T Aluminum Extrusion Press Machine Aluminium Extrusion Press Manufacturers Extruder Machine Aluminum

Brand Name:	Huanan
Model Number:	HN-1100T
MOQ:	1 Pcs
Price:	$159400-$182000
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Material:

Steel Forging

Uses:

Extrusion

Color:

Customized

Craft:

Forging

Power:

Electric Energy

Size:

Customizable

Use:

Aluminum Extrusion

Motor:

Servo Or Ordinary Motor

Functional:

Automatic Or Semi-automatic

Surface Treatment:

Heat Treatment

Packaging Details:

Wooden pallet

Highlight:

1100T aluminum extrusion press machine

aluminum extrusion machine manufacturers

aluminum extruder machine with warranty

Product Description

1100T Aluminum Extrusion Press Machine

The 1100T aluminum extrusion press is a highly productive and versatile machine, offering an optimal balance between power, speed, and cost-efficiency. Designed for medium-to-large aluminum profiles, it delivers high precision and fast cycle times for industrial applications.

Product Specifications

Attribute	Value
Material	Steel Forging
Uses	Extrusion
Color	Customized
Craft	Forging
Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment

Technical Parameters

Parameter	Value
Standard Billet Size:	Outer diameter: Φ127mm Length: 400-680/750mm
Extrusion capacity:	Machine extrusion force: 21Mpa 1000T(1100UST)
Dimensions of mold base cavity:	Diameter: Φ250mm Depth: H260mm
Equipment dimension:	Mechanical size: L9500mm×W3200mm×H3900mm Overall weight: 55T Total Power: 182.5KW
Motor:	Main oil pump: (Hilectro brand) HP12981-G102W-R1P4 Liquid cooling driver: Hi300-90
Hydraulic pump:	Main oil pump: (Germany Rexroth) A15VSO210 variable pumps Auxiliary pump: (Tokyo Keiki) SQP43-60-38

Advantages of Short-Stroke Back Loading Structure

The extrusion stroke is notably shorter than conventional extruders, increasing stress frame rigidity by 30%
Reduced main side cylinder volume minimizes hydraulic oil usage while enhancing speed and pressure control accuracy
Elimination of gasket circulation system reduces reactive operation time and power consumption by 15%
Servo motor-powered translation manipulator decreases non-extrusion time by 15%

Application Fields

Our hydraulic aluminum extrusion machine serves diverse industries including construction, industrial trade, new energy, and photovoltaic sectors. The produced aluminum profiles are used for:

Structural components in buildings (roofing, walling, doors, windows)
Decorative elements (panels, partitions, ceilings, railings)
Industrial applications (storage containers, formwork, structural supports)
Specialized uses (glass curtain walls, awnings, pedestrian bridges)

Technical Characteristics

Mature structural design of key components ensures low failure rate
Minimal impact and vibration with leak-resistant construction
Fast response time and high operational efficiency
Precision control with extrusion speed accuracy of ±0.1mm
High automation level reduces operator requirements

Frequently Asked Questions

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is recognized as one of China's premier extrusion equipment manufacturers. Customer feedback indicates a typical machine lifespan exceeding 15 years under normal operating conditions, with many well-known aluminum manufacturers among our clientele.

Q2: How to choose the right type machine?

Please provide details about your production requirements and profile sectional drawing dimensions. Our technical team will calculate and recommend the optimal machine configuration for your specific needs.

Q3: Will Huanan provide installation service?

Upon machine arrival and when installation conditions are met, we dispatch technicians to oversee installation and provide comprehensive operator training.

Q4: What is the delivery time of Huanan Machines?

600-1000MT: 30 days
1250-1800MT: 45-60 days
2000-3000MT: 180 days
3000MT+: 6-12 months
Complete production lines: 3-10 months

Q5: What services Huanan can do for you:

Huanan provides comprehensive one-stop services including technical consultation, customized production proposals, complete manufacturing and documentation services, installation, lifetime maintenance support, and operator training.
