High Quality 700T Aluminum Extrusion Line And Aluminum Extruder Supplier In China

Brand Name:	Huanan
Model Number:	HN-700T
MOQ:	1 Pcs
Price:	$89800-$106000
Payment Terms:	LC,T/T
Supply Ability:	5pcs/ 2 Months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO

Power:

Electric Energy

Size:

Customizable

Use:

Aluminum Extrusion

Motor:

Servo Or Ordinary Motor

Functional:

Automatic Or Semi-automatic

Surface Treatment:

Heat Treatment

Material:

Steel Forging

Color:

Customized

Packaging Details:

Wooden pallet

Highlight:

700T aluminum extrusion line

aluminum extrusion machine supplier

China aluminum extruder manufacturer

Product Description

High Quality 700T Aluminum Extrusion Line And Aluminum Extruder

Product Specifications

Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment
Material	Steel Forging
Color	Customized

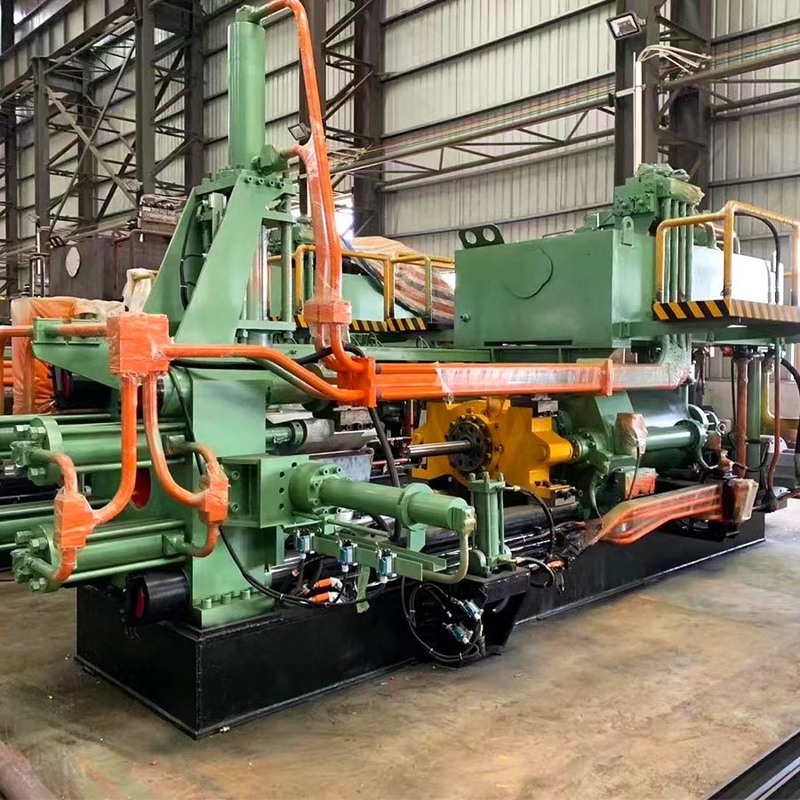

The 700T Customized Type Aluminum Extrusion Machine Press Extruder is a heavy-duty industrial machine designed for shaping aluminum alloys into specific profiles by forcing heated aluminum billets through a die under high pressure. This 700T Aluminum Extrusion Press is a key equipment for medium-sized aluminum profile production, combining cost-effectiveness with high efficiency.

Technical Parameters

Parameter	Value
Standard Billet Size (Outer diameter)	Φ100mm
Standard Billet Size (Length)	550mm
Machine extrusion force	22Mpa 729.7T(802UST)
Dimensions of mold base cavity (Diameter)	Φ220mm
Dimensions of mold base cavity (Depth)	H250mm
Mechanical size	L7950mm×W3200mm×H3550mm
Overall weight	33T
Total Power	103KW
Main oil pump (Hilectro brand)	HP12981-G102W-R1P4
Liquid cooling driver	Hi300-90KW
Main oil pump (Germany Rexroth)	A15VSO210 variable pumps
Auxiliary pump (Tokyo Keiki)	SQP43-60-38

Advantages of Short-Stroke Back Loading Structure

The extrusion stroke is shorter than conventional extruders with reduced frame opening, resulting in 30% higher rigidity than traditional extruders
Reduced main side cylinder volume decreases hydraulic oil usage, improving speed and pressure control accuracy while reducing energy consumption
Eliminates gasket circulation system, reducing reactive operation time and production line power consumption by 15%
Servo motor-driven translation manipulator reduces non-extrusion time by 15%

Application Fields

Construction Industry: Window/door profiles, curtain wall mullions
Industrial Sector: Automotive parts, heat sinks, electronic enclosures
Consumer Goods: Furniture frames, lighting components

Technical Characteristics

Key components (container, extrusion pad, shear blade, ingot feeder) feature mature structures with low failure rates
Minimal impact and vibration with reduced oil leakage risk
Fast response with high efficiency and short non-extrusion time
High precision with extrusion speed control accuracy of ±0.1mm
High automation level with intelligent production reduces operator requirements

Product Images

Frequently Asked Questions

Q1: How is the quality of Huanan Brand machine and the service life?

Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to customer feedback, the machine lifespan typically exceeds 15 years under normal conditions, with many well-known aluminum manufacturers as our customers.

Q2: How to choose the right type machine?

Please provide details about your products and profile sectional drawing dimensions. We will calculate and recommend the most suitable machine size for your requirements.

Q3: Will Huanan provide installation service?

When the machine arrives at your facility and installation conditions are met, we will send technicians for installation and provide comprehensive training on proper equipment operation.

Q4: What is the delivery time of Huanan Machines?

600-1000MT: 30 days
1250-1800MT: 45-60 days
2000-3000MT: 180 days
3000MT+: 6-12 months

Complete production lines typically require 3-10 months for design and manufacturing.

Q5: What services Huanan can do for you?

Huanan provides comprehensive one-stop services including:

Technical consultation and support
Custom production proposals
Complete manufacturing, inspection, and shipping services
Installation, training, and lifetime maintenance support
