High Quality Energy-saving Servo Motor 2500T Aluminium Extrusion Press Machine

브랜드 이름:	Huanan
모델 번호:	HN-2500T
MOQ:	1개
가격:	$792500-$904200
지불 조건:	LC,티/티
공급 능력:	5개/2개월

상세 정보

제품 설명

상세 정보

원래 장소:

광동

인증:

ISO

힘:

전기 에너지

크기:

맞춤형

사용:

알루미늄 압출

모터:

서보 또는 일반 모터

기능성:

자동 또는 반자동

표면 처리:

열처리

재료:

강철 단조

색상:

맞춤형

포장 세부 사항:

나무 팔레트

강조하다:

energy-saving servo motor extrusion press

2500T aluminum extrusion machine

aluminum extrusion press with servo motor

제품 설명

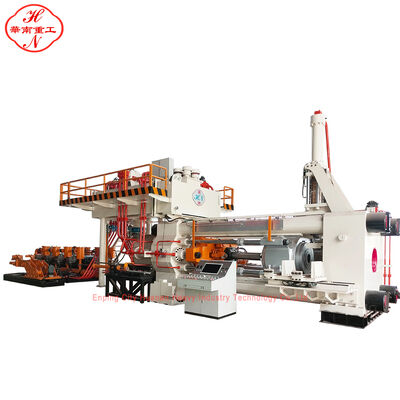

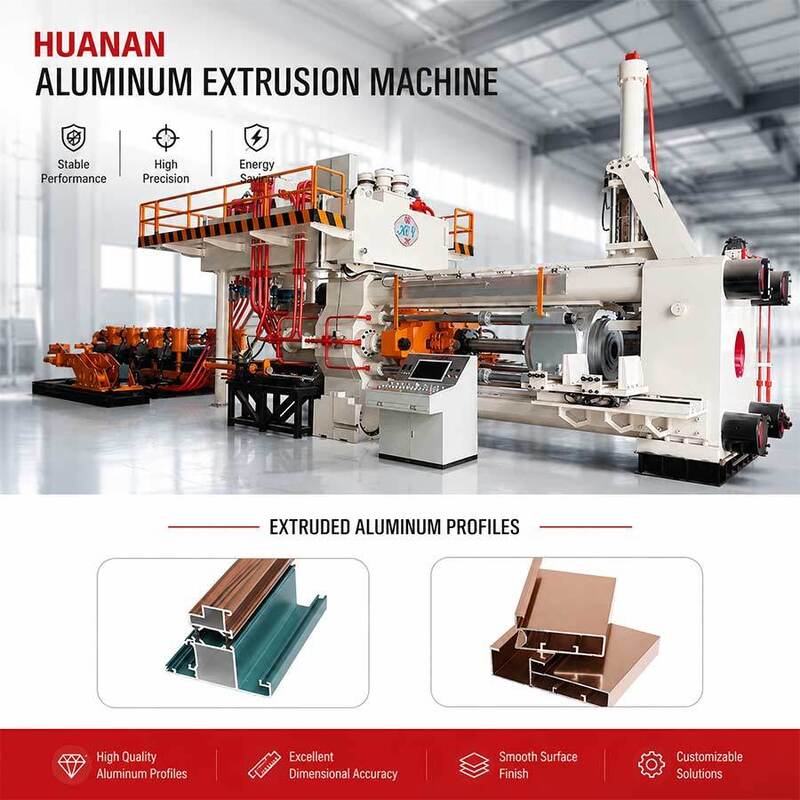

2500T Aluminum Extrusion Press Machine

High Quality Energy-saving Servo Motor 2500T Aluminium Extrusion Press Machine

The 2500T Aluminum Extrusion Press is a heavy-duty industrial machine designed for efficient production of large and complex aluminum profiles. With a rated extrusion force of 2500 tons, it provides excellent structural rigidity, stable hydraulic performance, and reliable operation for continuous high-volume manufacturing.

Equipped with precision hydraulic control systems and optimized main cylinder design, this aluminum extrusion machine ensures smooth extrusion of thick-wall, wide-section, and customized aluminum profiles. The advanced control system improves dimensional accuracy, enhances product consistency, and reduces material waste.

Product Specifications

Power	Electric energy
Size	Customizable
Use	Aluminum Extrusion
Motor	Servo or ordinary motor
Functional	Automatic or semi-automatic
Surface treatment	Heat treatment
Material	Steel Forging
Color	Customized

Technical Specifications

Standard billet size - Outer diameter	Φ236mm
Standard billet size - Length	1150mm
Main Piston	Φ1080mm
Machine extrusion force	25Mpa (2515T)
Dimensions of mold base cavity - Diameter	Φ480mm
Dimensions of mold base cavity - Depth	H480mm
Total Power	850KW
Main oil pump (Hilectro brand)	HP13096-G102W-R1P4 *5
Liquid cooling driver	HI200-160KW *5
Main oil pump (Germany Rexroth)	A15V280 31.5MPa variable pumps
Auxiliary pump (Tokyo Keiki)	SQP43-60-38

Advantages of Short-Stroke Back Loading Structure

30% increased rigidity compared to traditional extruders due to shorter extrusion stroke and reduced frame opening
Improved hydraulic efficiency with reduced oil consumption and enhanced speed/pressure control accuracy
15% reduction in non-extrusion time through elimination of gasket circulation system
Additional 15% reduction in non-extrusion time via servo motor-driven translation manipulator

Application Fields

Construction Industry
Industrial Trade
New Energy Industry
Photovoltaic Industry

Aluminum profiles from this press are used in roofs, walls, doors, windows, frames, structural systems, curtain walls, awnings, bridges, decorative panels, partitions, ceilings, railings, and various industrial/residential applications.

Technical Characteristics

Proven design with low failure rates for critical components
Minimal vibration and impact with reduced oil leakage risk
High-speed response with minimized non-extrusion periods
Precision control with ±0.1mm extrusion speed accuracy
Advanced automation reduces operator requirements

Shipment & Factory Pictures

Frequently Asked Questions

How is the quality of Huanan Brand machine and the service life?

Huanan Brand is among China's top extrusion equipment manufacturers. Customer feedback indicates a typical machine lifespan exceeding 15 years with proper maintenance, with many well-known aluminum manufacturers among our clients.

How to choose the right type machine?

Please share details about your products and provide profile sectional drawings. We'll calculate and recommend the optimal machine size for your requirements.

Will Huanan provide installation service?

Our technicians will visit your facility for installation and operator training once the equipment arrives and installation conditions are met.

What is the delivery time of Huanan Machines?

600-1000MT: 30 days
1250-1800MT: 45-60 days
2000-3000MT: 180 days
3000MT+: 6-12 months

Complete production lines typically require 3-10 months for design and manufacturing.

What services Huanan can do for you?

We provide comprehensive support including technical consultation, production proposals, complete manufacturing services, shipping documentation, installation, lifetime maintenance, and operator training.
